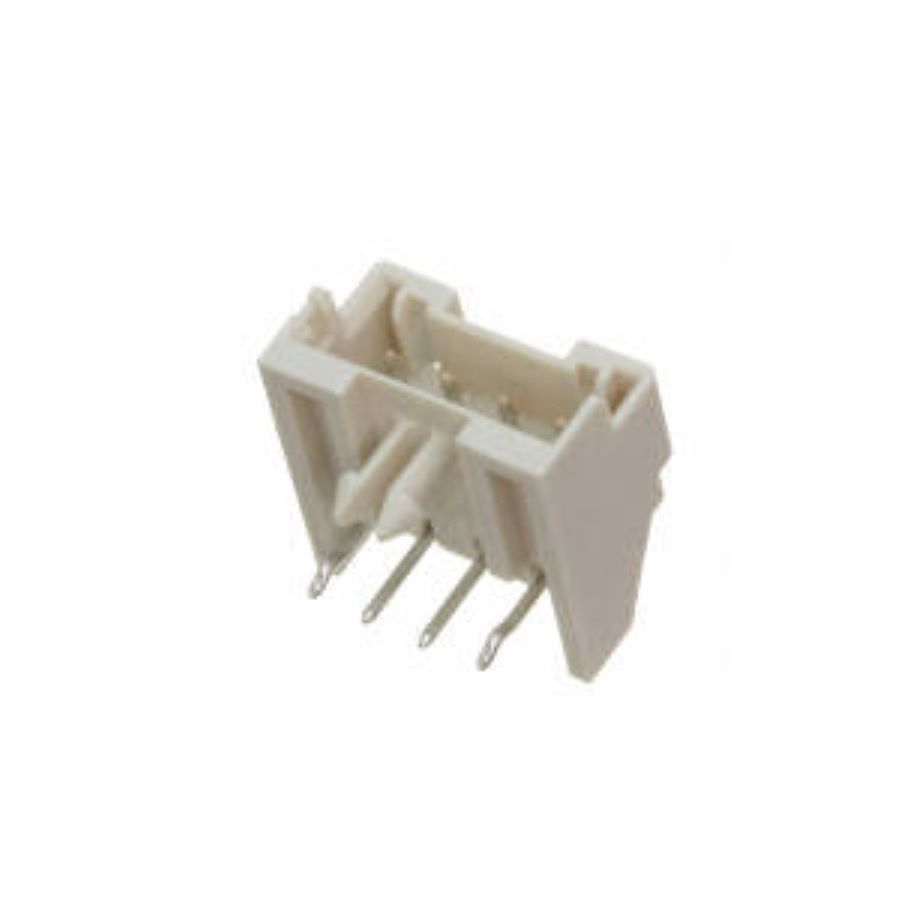

S04B-XASK-1(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
S04B-XASK-1(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings PCB Header Number of Positions:4 Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 7.112 mm |
| Width | 9.906 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 4 |
| Height | 7.6 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| RoHS | Compliant |
| Lead Pitch | 2.5 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead Length | 3.4 mm |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.5 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | Beige |
| Gender | Male |
| Number of Contacts | 4 |
| Number of Poles | 4 |
| Connector Type | Header |
| Wire/Cable Gauge | 20 AWG |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Contact Resistance | 10 mΩ |
| Termination Post Length | 3.2 mm |
Stock: 74
Distributors
pcbx
pcbxUnit Price$0.20342
Ext.Price$0.20342
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.20342 | $0.20342 |
| 10 | $0.18338 | $1.83380 |
| 50 | $0.16531 | $8.26550 |
| 100 | $0.15081 | $15.08100 |
| 500 | $0.13758 | $68.79000 |
| 1000 | $0.12551 | $125.51000 |
| 3000 | $0.11450 | $343.50000 |
| 5000 | $0.10447 | $522.35000 |
