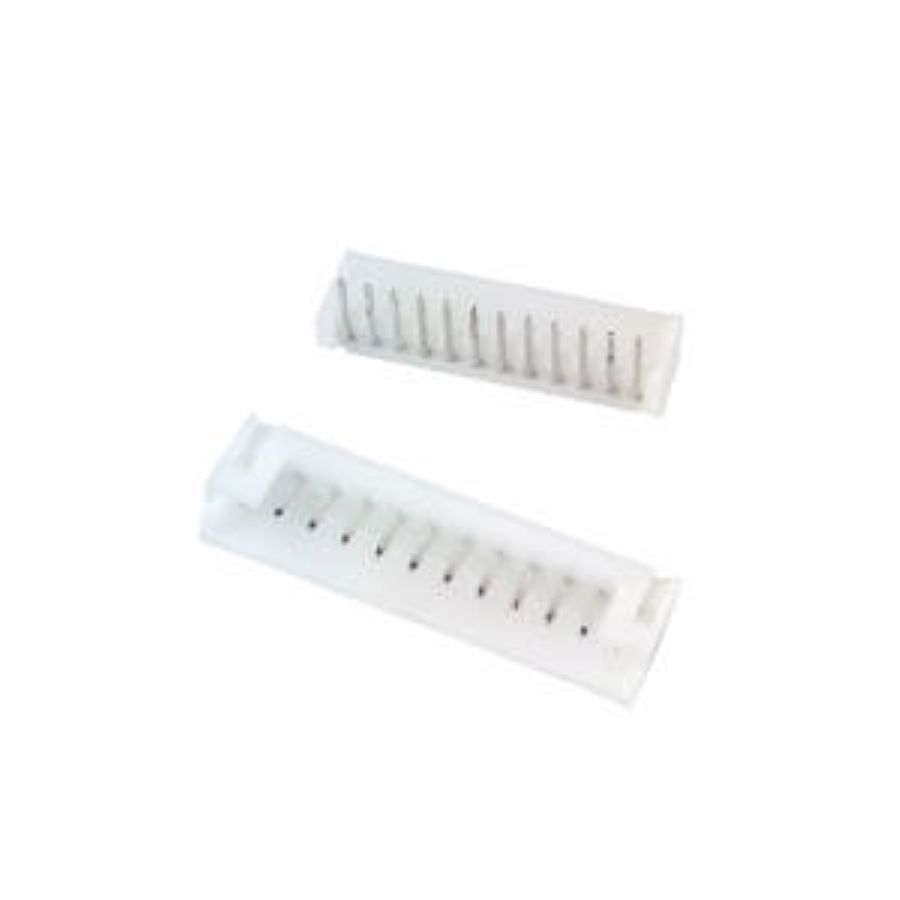

S12B-PH-K-S(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
S12B-PH-K-S(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:12 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 25.9 mm |
| Width | 4.5 mm |
| Termination | Press-Fit |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 12 |
| Height | 9.4 mm |
| Packaging | Bulk |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2 mm |
| Current Rating | 2 A |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 12 |
| Connector Type | Male Pin |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Fastening Type | Detent |
| Housing Color | Natural |
| Contact Mating Length | 3.302 mm |
| Mating Post Length | 3.3 mm |
| Termination Post Length | 3.4 mm |
