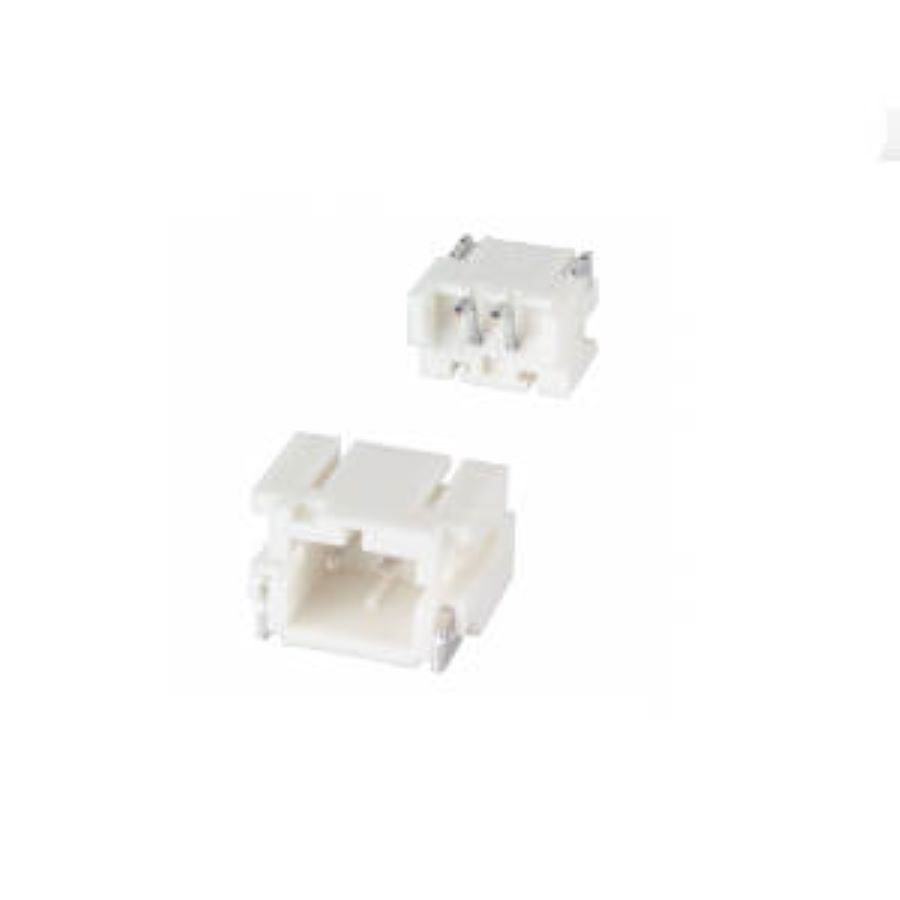

S2B-PH-SM4-TB(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
S2B-PH-SM4-TB(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:2 Pitch:2 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2 mm |
| Current Rating | 2 A |
| Flammability Rating | UL94 V-0 |
| Color | White |
| Gender | Male |
| Number of Contacts | 2 |
| Mounting Style | Horizontal, Surface Mount |
| lead free status | Lead Free |
| operating temperature | 85.0 °C |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| size width | 7.60 mm |
| size length | 7.90 mm |
| size height | 5.50 mm |
| voltage rating ac | 100 V |
| Housing Color | Natural |
| pin pitch | 2.00 mm |
| Mating Post Length | 3.3 mm |
Stock: 6885
Distributors
pcbx
pcbxUnit Price$0.18106
Ext.Price$0.18106
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.18106 | $0.18106 |
| 10 | $0.15930 | $1.59300 |
| 50 | $0.14016 | $7.00800 |
| 100 | $0.12665 | $12.66500 |
| 500 | $0.11444 | $57.22000 |
| 1000 | $0.10340 | $103.40000 |
| 3000 | $0.09985 | $299.55000 |
| 5000 | $0.09643 | $482.15000 |
