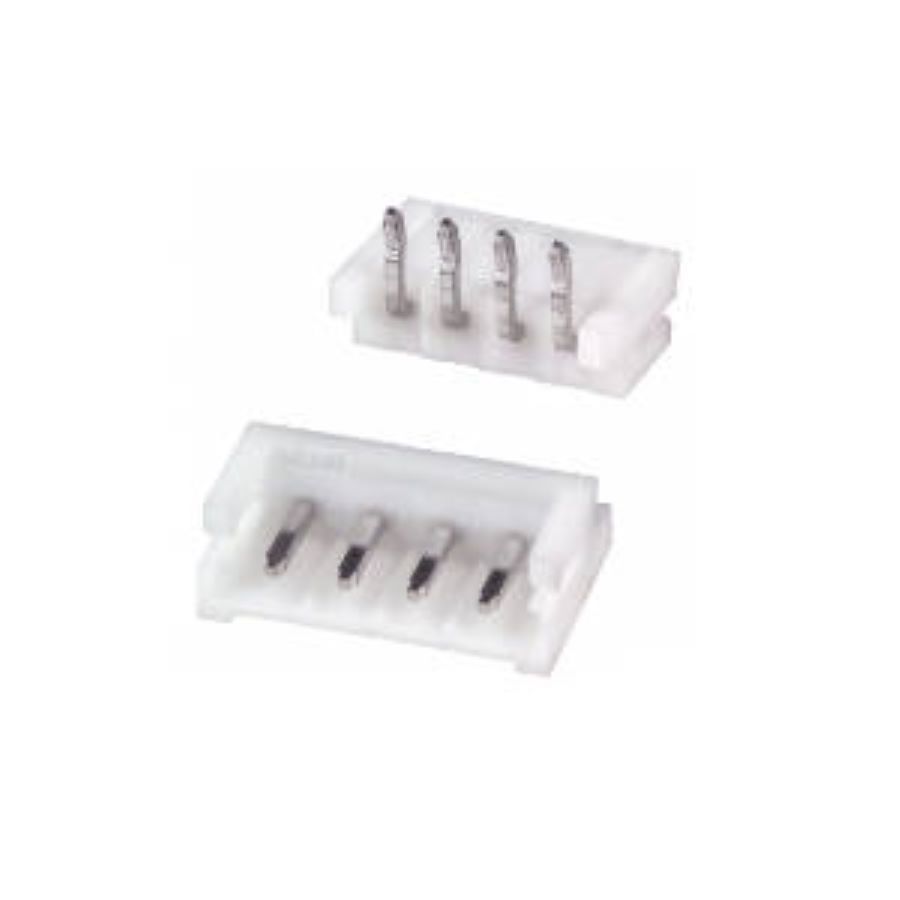

S4B-EH(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
S4B-EH(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:4 Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Termination | Press-Fit, Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Plating | Tin, Tin Lead |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.5 mm |
| Gender | Male |
| Number of Contacts | 4 |
| Mounting Style | Through Hole |
| lead free status | Lead Free |
| operating temperature | 85.0 °C |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| Connector Type | Header |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| size width | 8.20 mm |
| size length | 12.5 mm |
| size height | 4.20 mm |
| Housing Color | White |
| pin pitch | 2.50 mm |
| Mating Post Length | 4 mm |
| Termination Post Length | 3.2 mm |
Stock: 7265
Distributors
pcbx
pcbxUnit Price$0.08016
Ext.Price$0.08016
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.08016 | $0.08016 |
| 10 | $0.07094 | $0.70940 |
| 50 | $0.06278 | $3.13900 |
| 100 | $0.05745 | $5.74500 |
| 500 | $0.05257 | $26.28500 |
| 1000 | $0.04811 | $48.11000 |
| 3000 | $0.04418 | $132.54000 |
| 5000 | $0.04057 | $202.85000 |
