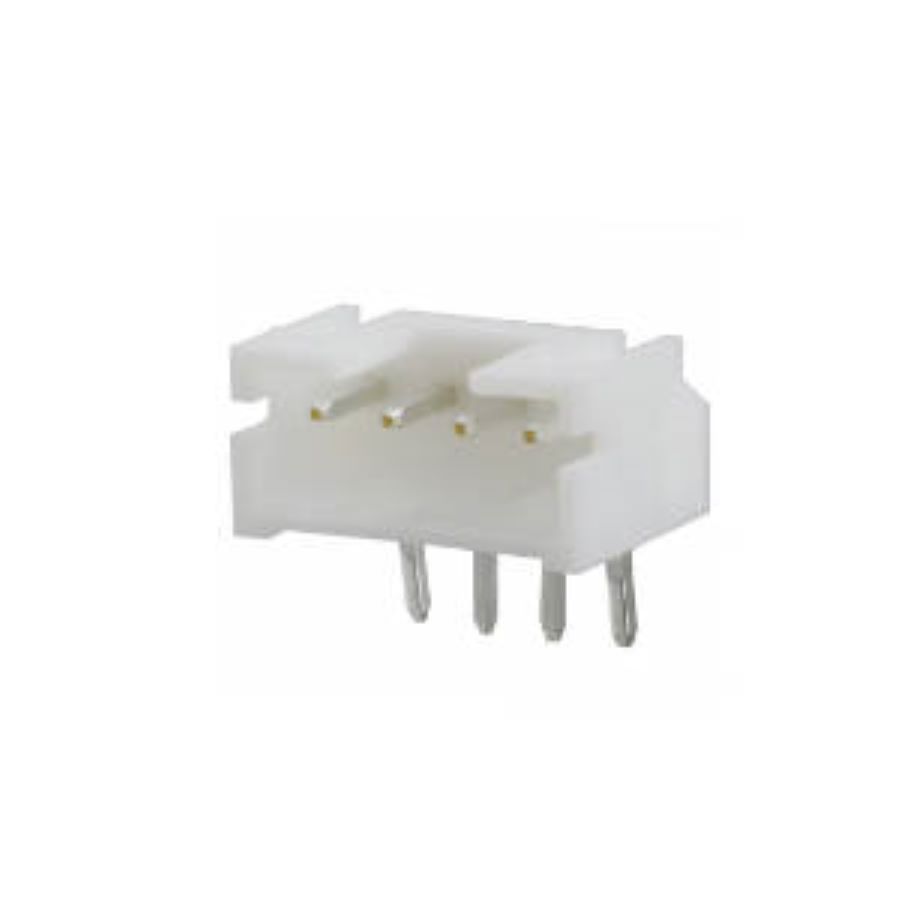

S4B-PH-K-S(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
S4B-PH-K-S(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:4 Pitch:2 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2 mm |
| Current Rating | 2 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Horizontal |
| Color | White |
| Gender | Male |
| Number of Contacts | 4 |
| Mounting Style | Through Hole |
| lead free status | Lead Free |
| operating temperature | 85.0 °C |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| Connector Type | Header |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| size width | 7.60 mm |
| size length | 9.90 mm |
| size height | 4.80 mm |
| voltage rating ac | 100 V |
| Housing Color | Natural |
| pin pitch | 2.00 mm |
| Mating Post Length | 3.3 mm |
| Termination Post Length | 3.4 mm |
Stock: 33700
Distributors
pcbx
pcbxUnit Price$0.09946
Ext.Price$0.09946
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.09946 | $0.09946 |
| 10 | $0.04973 | $0.49730 |
| 50 | $0.04501 | $2.25050 |
| 100 | $0.04074 | $4.07400 |
| 500 | $0.03463 | $17.31500 |
| 1000 | $0.03104 | $31.04000 |
| 3000 | $0.02975 | $89.25000 |
| 5000 | $0.02852 | $142.60000 |
| 10000 | $0.02705 | $270.50000 |
