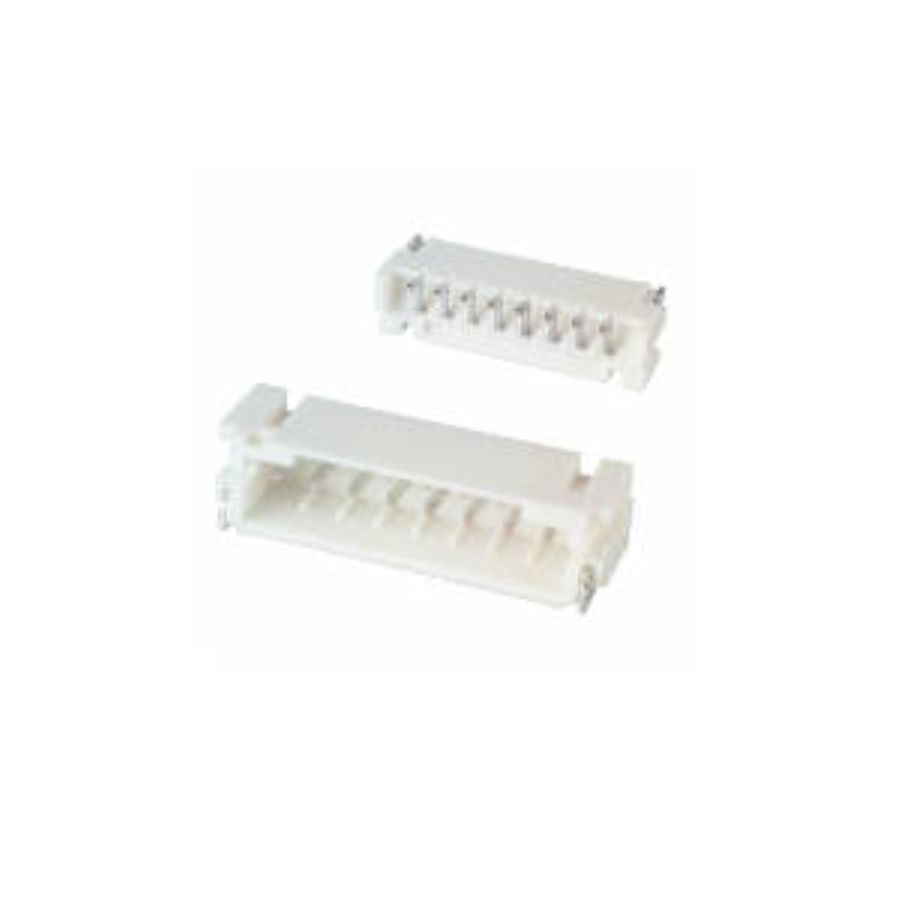

S8B-PH-SM4-TB(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
S8B-PH-SM4-TB(LF)(SN)
Datasheet:
Description:
Board to Board Connectors SMD/SMT Number of Positions:8 Number of Rows:1 Pitch:2 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Reel |
| Voltage Rating | 100 V |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2 mm |
| Current Rating | 2 A |
| Flammability Rating | UL 94 V-0 |
| Color | White |
| Gender | Male |
| Number of Contacts | 8 |
| Mounting Style | Horizontal, Surface Mount |
| lead free status | Lead Free |
| operating temperature | 85.0 °C |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| size width | 7.60 mm |
| size length | 19.9 mm |
| size height | 5.50 mm |
| voltage rating ac | 100 V |
| Housing Color | Natural |
| pin pitch | 2.00 mm |
