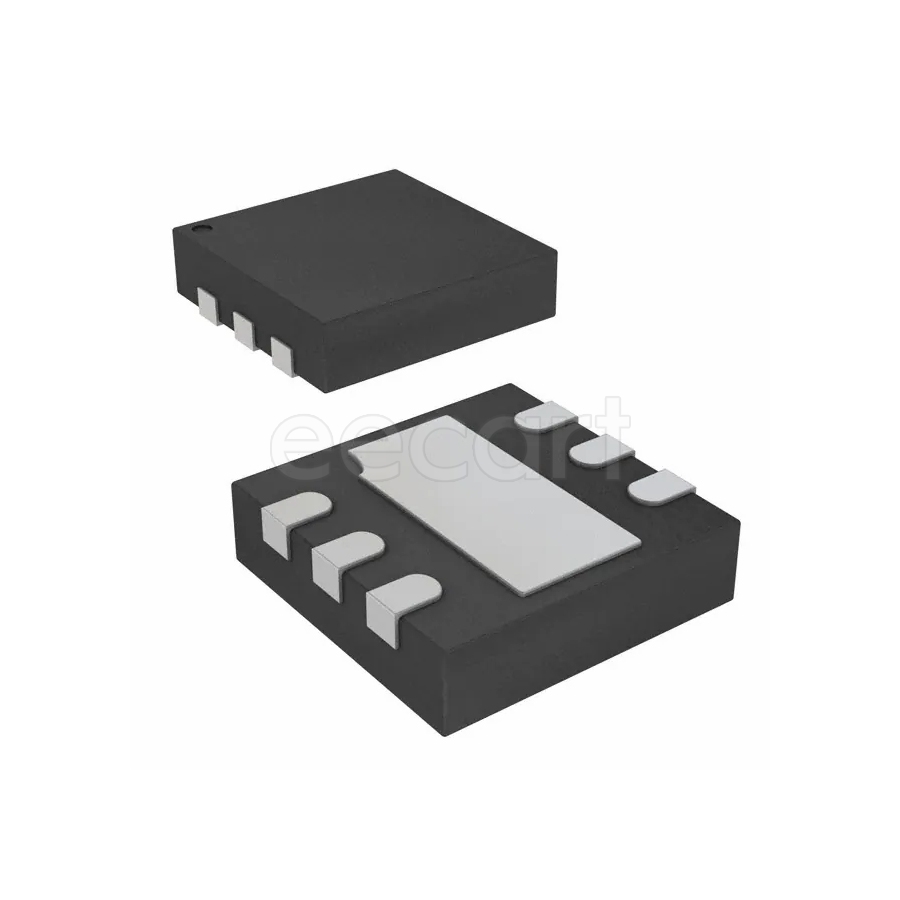

SC121ULTRT
Manufacturer:
Semtech
Mfr.Part #:
SC121ULTRT
Datasheet:
Description:
Voltage Regulators - Switching MLPD-UT-6 SMD/SMT Boost Adjustable, Fixed 1.8 V to 5 V
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Min Input Voltage | 700 mV |
| Output Current | 900 mA |
| Output Voltage | 1.8 V to 5 V |
| Operating Supply Voltage | 4.5 V |
| Output Type | Adjustable, Fixed |
| Max Output Current | 190 mA |
| Number of Channels | 1 |
| Synchronous Rectifier | Yes |
| Output Configuration | Positive |
| Topology | Boost |
| Switching Frequency | 1.2 MHz |
| Max Input Voltage | 4.5 V |
| Number of Outputs | 1 |
| Efficiency | 94 % |
| Min Output Voltage | 1.8 V |
| Max Output Voltage | 5 V |
| Schedule B | 8542390000 |
| Function | Step-Up |
Stock: 2790
Distributors
pcbx
pcbxUnit Price$0.91990
Ext.Price$0.91990
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.91990 | $0.91990 |
| 10 | $0.67625 | $6.76250 |
| 25 | $0.60957 | $15.23925 |
| 50 | $0.57390 | $28.69500 |
| 100 | $0.54031 | $54.03100 |
| 300 | $0.51358 | $154.07400 |
| 500 | $0.48817 | $244.08500 |
| 1000 | $0.48047 | $480.47000 |
| 3000 | $0.43430 | $1302.90000 |
| 5000 | $0.43089 | $2154.45000 |
