SC284ULTRT
Manufacturer:
Semtech
Mfr.Part #:
SC284ULTRT
Datasheet:
Description:

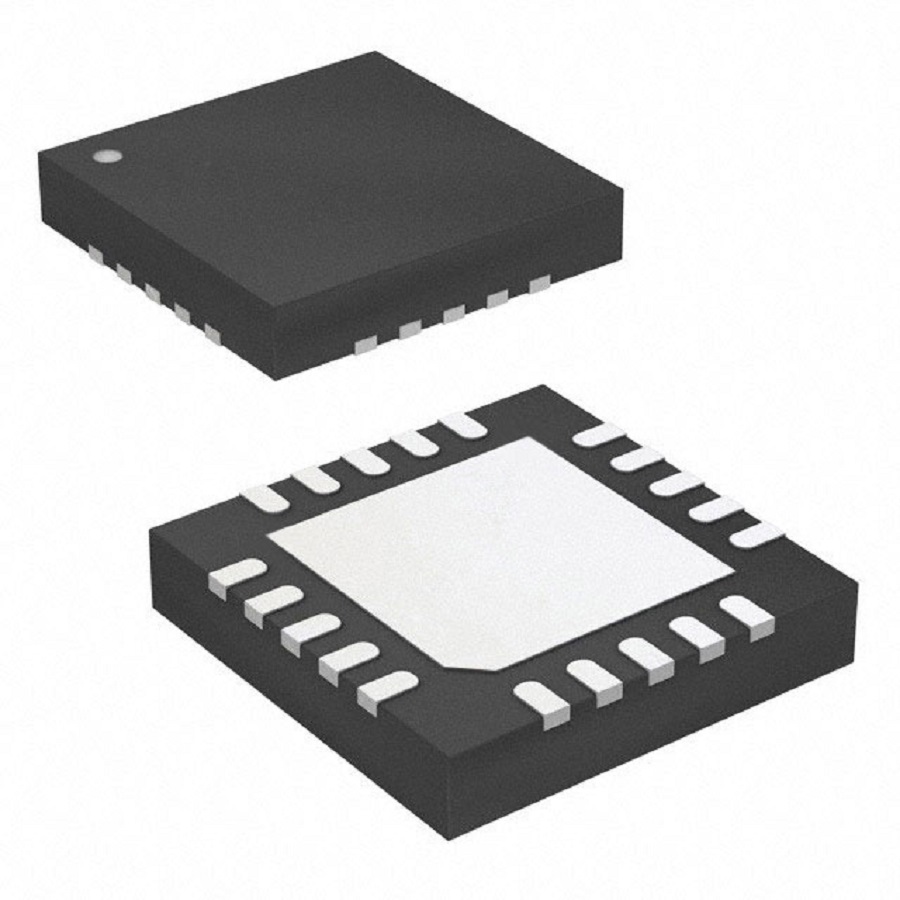

Voltage Regulators - Switching MLPQ-UT-20 SMD/SMT Buck Adjustable 800 mV to 3.3 V
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 20 |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Min Input Voltage | 2.9 V |
| Output Current | 1.8 A |
| Output Voltage | 800 mV to 3.3 V |
| Output Type | Adjustable |
| Synchronous Rectifier | Yes |
| Output Configuration | Positive |
| Topology | Buck |
| Switching Frequency | 2.5 MHz |
| Max Input Voltage | 5.5 V |
| Number of Outputs | 2 |
| Efficiency | 94 % |
| Min Output Voltage | 800 mV |
| Max Output Voltage | 3.3 V |
| Function | Step-Down |
Stock: 2172
Distributors
pcbx
pcbxUnit Price$1.45167
Ext.Price$1.45167
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.45167 | $1.45167 |
| 10 | $1.08234 | $10.82340 |
| 25 | $0.98916 | $24.72900 |
| 50 | $0.93420 | $46.71000 |
| 100 | $0.88229 | $88.22900 |
| 300 | $0.84384 | $253.15200 |
| 500 | $0.80706 | $403.53000 |
| 1000 | $0.78226 | $782.26000 |
| 3000 | $0.76944 | $2308.32000 |
| 5000 | $0.73182 | $3659.10000 |
