SC39-11GWA
Manufacturer:
Kingbright
Mfr.Part #:
SC39-11GWA
Datasheet:
Description:

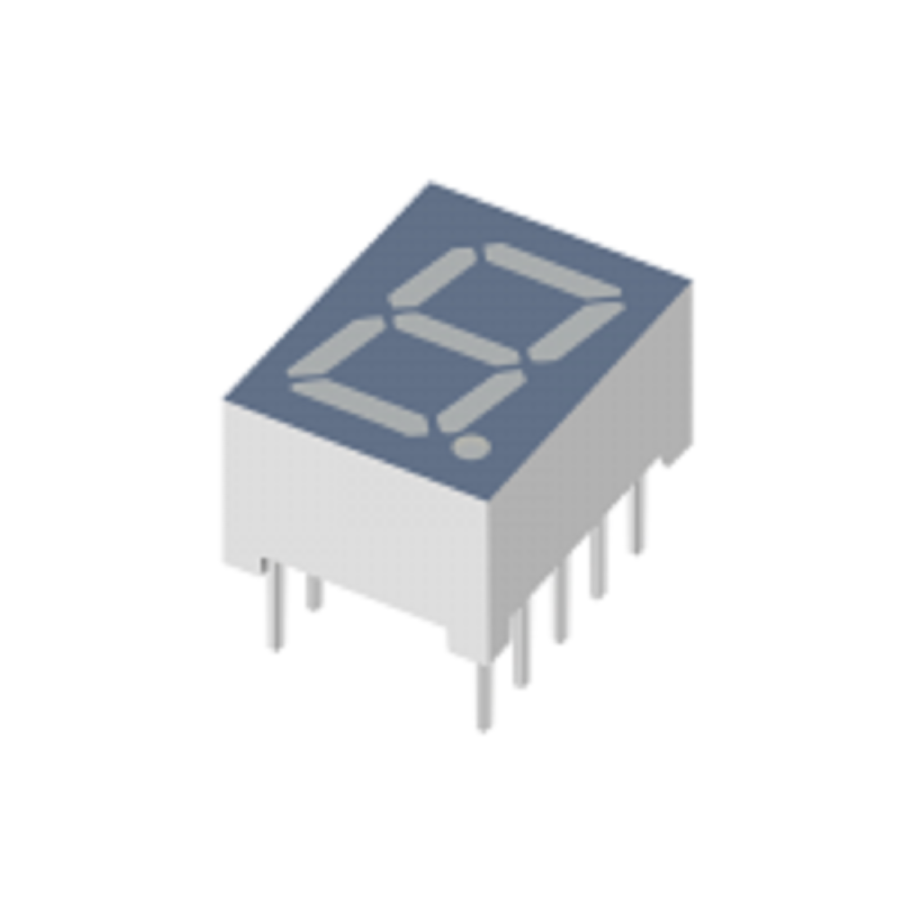

LED Displays Through Hole 7-Segment 10 mm x 13 mm x 7 mm 0.39 in Number of Characters:1
| Parameter | Value |
|---|---|
| Width | 10 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 13 mm |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Forward Current | 20 mA |
| Forward Voltage | 2.2 V |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Max Power Dissipation | 62.5 mW |
| Color | Green |
| Illumination Color | Green |
| Luminous Intensity | 6.4 mcd |
| Element Configuration | Common Cathode |
| Number of Positions | 1 |
| Wavelength | 568 nm |
| Display Type | 7-Segment |
| power consumption | 62.5 mW |
| Test Current | 20 mA |
| Character Height | 9.9 mm |
| Number of Characters | 1 |
| Module Size - W x H x T | 10 mm x 13 mm x 7 mm |
| Character Size | 0.39 in |
Stock: 460
Distributors
pcbx
pcbxUnit Price$1.85263
Ext.Price$1.85263
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.85263 | $1.85263 |
| 10 | $1.71499 | $17.14990 |
| 25 | $1.57960 | $39.49000 |
| 50 | $1.45490 | $72.74500 |
| 100 | $1.34004 | $134.00400 |
| 300 | $1.23425 | $370.27500 |
| 500 | $1.13681 | $568.40500 |
| 1000 | $1.04707 | $1047.07000 |
| 3000 | $0.96441 | $2893.23000 |
| 5000 | $0.88827 | $4441.35000 |
