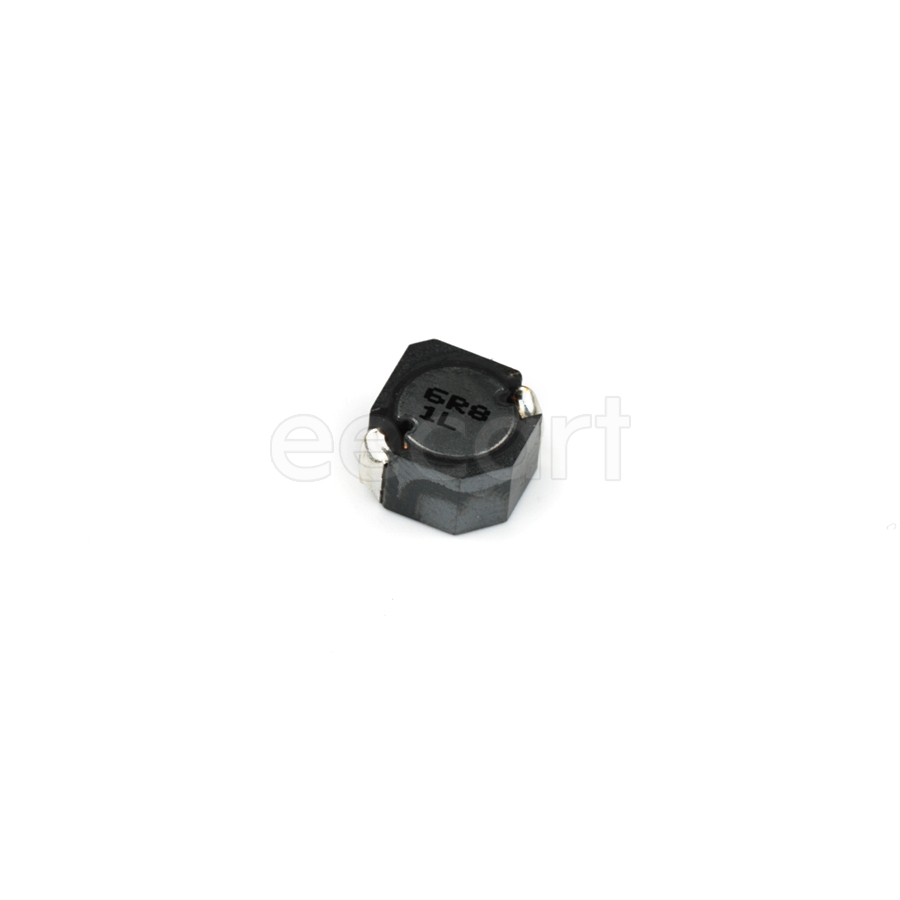

SD53-100-R
Manufacturer:
Eaton
Mfr.Part #:
SD53-100-R
Datasheet:
Description:
Fixed Inductors 5.20mmL×5.20mmW×3.00mmH SMD/SMT 10 µH 20 % 1.41 A 90 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 3 mm |
| Length | 5.2 mm |
| Width | 5.1816 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 2020 |
| Number of Pins | 2 |
| Height | 3 mm |
| Packaging | Reel |
| Depth | 5.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Weight | 453.59237 mg |
| Current Rating | 1.41 A |
| DC Resistance (DCR) | 90 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 10 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1.41 A |
| inductance tolerance | 20 % |
| Max DC Current | 1.41 A |
| DC Current | 1.41 A |
| Saturation Current | 1.4 A |
| Schedule B | 8504500000 |
| Composition(Kit Type) | Wirewound |
| Type | Wirewound |
| RoHS | Compliant |
Stock: 7167
Distributors
pcbx
pcbxUnit Price$1.10157
Ext.Price$1.10157
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.10157 | $1.10157 |
| 10 | $0.90350 | $9.03500 |
| 25 | $0.84641 | $21.16025 |
| 50 | $0.79293 | $39.64650 |
| 100 | $0.74283 | $74.28300 |
| 300 | $0.71818 | $215.45400 |
| 500 | $0.69434 | $347.17000 |
| 1000 | $0.67129 | $671.29000 |
