SDE0403A-100M
Manufacturer:
Bourns
Mfr.Part #:
SDE0403A-100M
Datasheet:
Description:

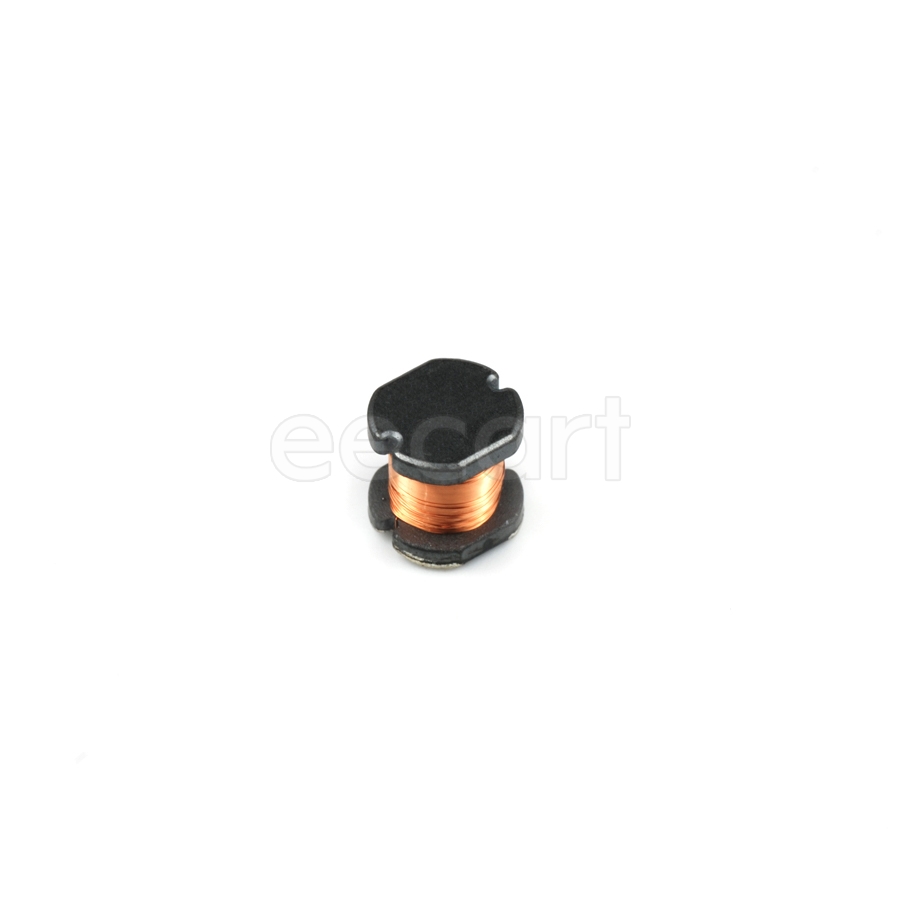

Fixed Inductors 4.50mmL×4.00mmW×3.50mmH SMD/SMT 10 µH 20 % 1.05 A 172 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 3.5 mm |
| Length | 4.4958 mm |
| Width | 3.9878 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Composition(Kit Type) | Wirewound |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Ratings | AEC-Q200 |
| Self Resonant Frequency | 36 MHz |
| Current Rating | 1.05 A |
| DC Resistance (DCR) | 172 mΩ |
| Test Frequency | 1 MHz |
| Shielding | Unshielded |
| Inductance | 10 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1.05 A |
| inductance tolerance | 20 % |
| Saturation Current | 1.4 A |
| Schedule B | 8504500000 |
| Type | Wirewound |
| Height | 3.5 mm |
Stock: 5383
Distributors
pcbx
pcbxUnit Price$0.29431
Ext.Price$0.29431
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.29431 | $0.29431 |
| 10 | $0.24278 | $2.42780 |
| 25 | $0.22477 | $5.61925 |
| 50 | $0.21199 | $10.59950 |
| 100 | $0.19978 | $19.97800 |
| 300 | $0.18660 | $55.98000 |
| 500 | $0.17428 | $87.14000 |
| 1000 | $0.16433 | $164.33000 |
