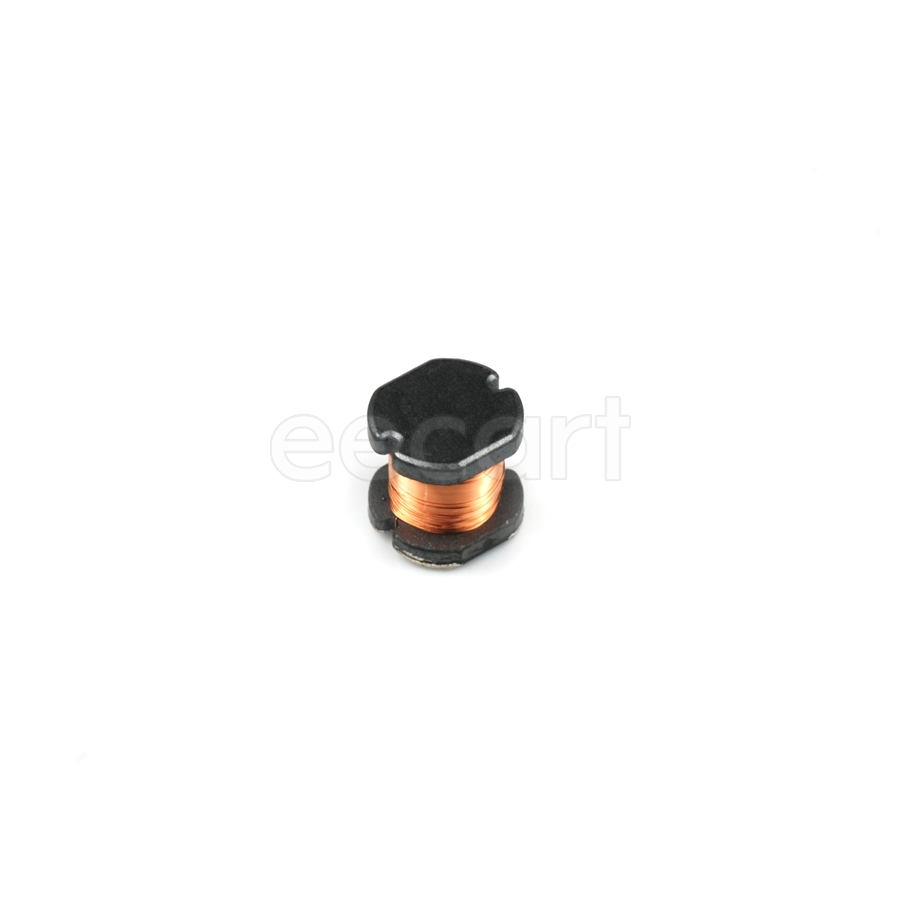

SDE0805A-100M
Manufacturer:
Bourns
Mfr.Part #:
SDE0805A-100M
Datasheet:
Description:
Fixed Inductors 7.80mmL×7.00mmW×5.50mmH SMD/SMT 10 µH 20 % 3.2 A 70 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 5.5 mm |
| Length | 7.7978 mm |
| Width | 7.0104 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Composition(Kit Type) | Wirewound |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Ratings | AEC-Q200 |
| Self Resonant Frequency | 27.5 MHz |
| Current Rating | 3.2 A |
| DC Resistance (DCR) | 70 mΩ |
| Test Frequency | 1 MHz |
| Shielding | Unshielded |
| Inductance | 10 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 3.2 A |
| inductance tolerance | 20 % |
| Saturation Current | 2.6 A |
| Schedule B | 8504500000 |
| Height | 5.5 mm |
| Type | Wirewound |
Stock: 3204
Distributors
pcbx
pcbxUnit Price$0.33171
Ext.Price$0.33171
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.33171 | $0.33171 |
| 10 | $0.27357 | $2.73570 |
| 25 | $0.23938 | $5.98450 |
| 50 | $0.23244 | $11.62200 |
| 100 | $0.22570 | $22.57000 |
| 300 | $0.20677 | $62.03100 |
| 500 | $0.18943 | $94.71500 |
| 1000 | $0.17355 | $173.55000 |
| 3000 | $0.16297 | $488.91000 |
| 5000 | $0.15303 | $765.15000 |
| 10000 | $0.15217 | $1521.70000 |
