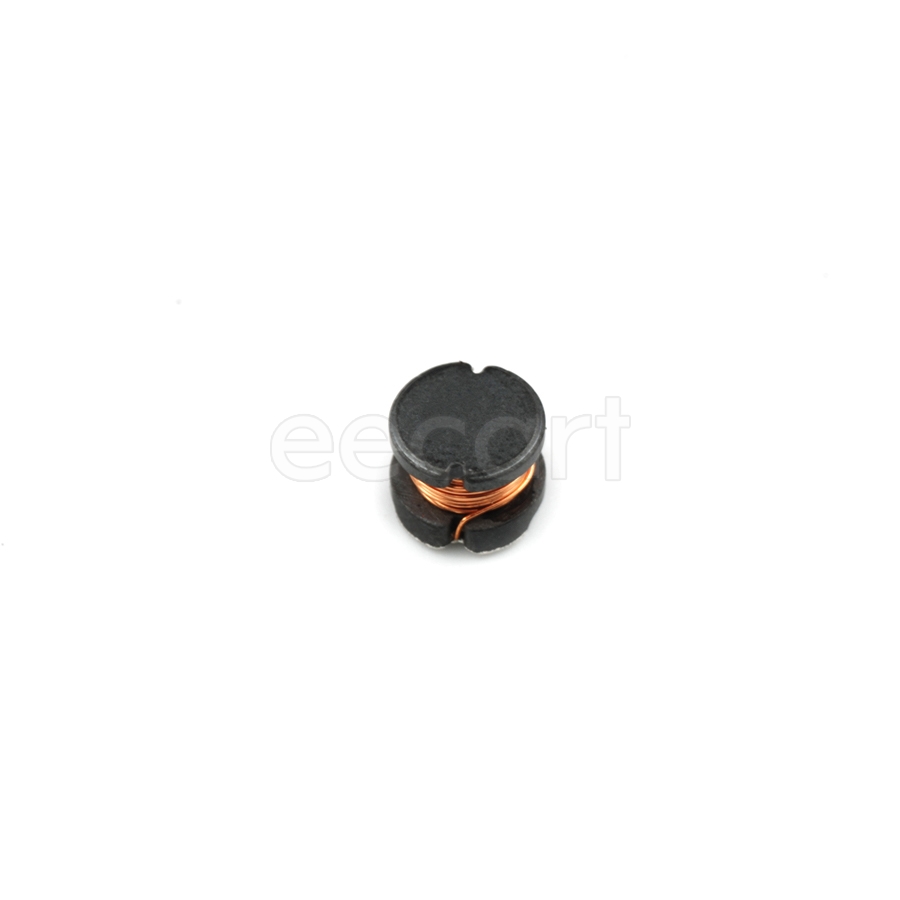

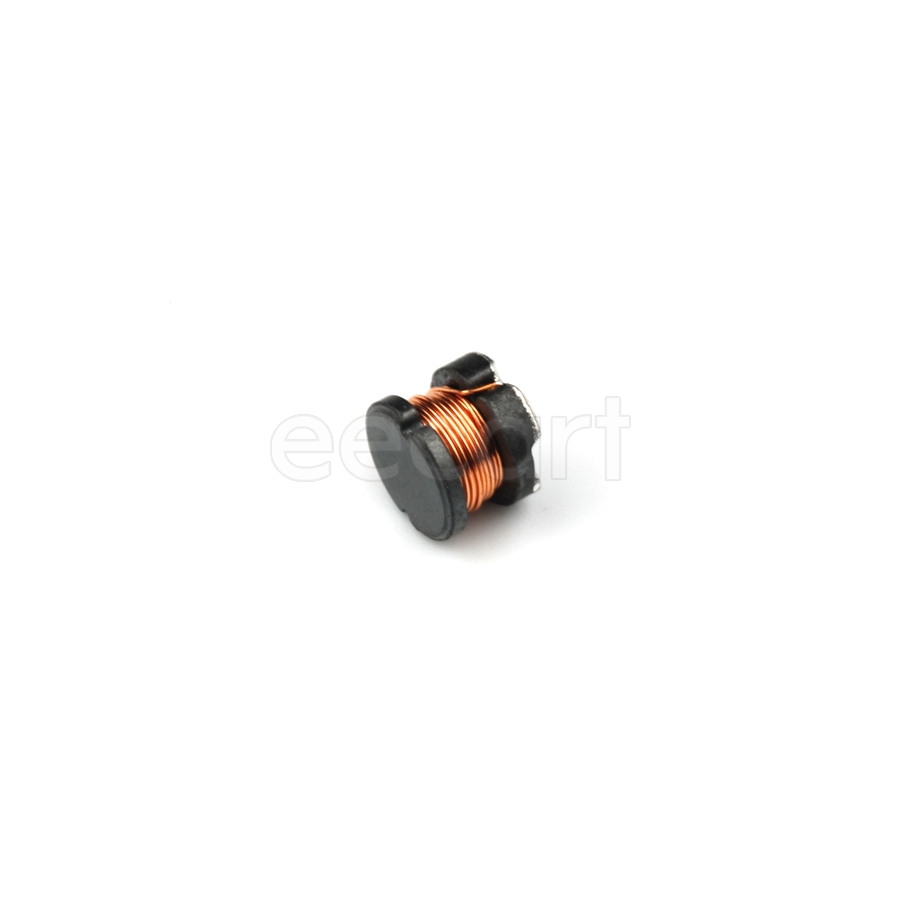

SDR0604-8R2ML
Manufacturer:
Bourns
Mfr.Part #:
SDR0604-8R2ML
Datasheet:
Description:
Fixed Inductors 5.80mmL×5.80mmW×4.80mmH SMD/SMT 8.2 µH 20 % 1.5 A 90 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 4.8 mm |
| Length | 5.8 mm |
| Width | 4.8 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Composition(Kit Type) | Wirewound |
| Height | 4.8 mm |
| Packaging | Reel |
| Depth | 5.8 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 26 MHz |
| Q Factor | 20 |
| Current Rating | 1.5 A |
| DC Resistance (DCR) | 90 mΩ |
| Test Frequency | 1 kHz |
| Military Standard | Not |
| Shielding | Unshielded |
| Inductance | 8.2 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1.5 A |
| inductance tolerance | 20 % |
| Max DC Current | 1.5 A |
| DC Current | 1.5 A |
| Saturation Current | 2.3 A |
| Schedule B | 8504500000 |
| Type | Wirewound |
Stock: 444
Distributors
pcbx
pcbxUnit Price$0.27529
Ext.Price$0.27529
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.27529 | $0.27529 |
| 10 | $0.22741 | $2.27410 |
| 25 | $0.21314 | $5.32850 |
| 50 | $0.19977 | $9.98850 |
| 100 | $0.18723 | $18.72300 |
| 300 | $0.17731 | $53.19300 |
| 500 | $0.16792 | $83.96000 |
| 1000 | $0.15903 | $159.03000 |
| 3000 | $0.15061 | $451.83000 |
| 5000 | $0.14263 | $713.15000 |
| 10000 | $0.13508 | $1350.80000 |
