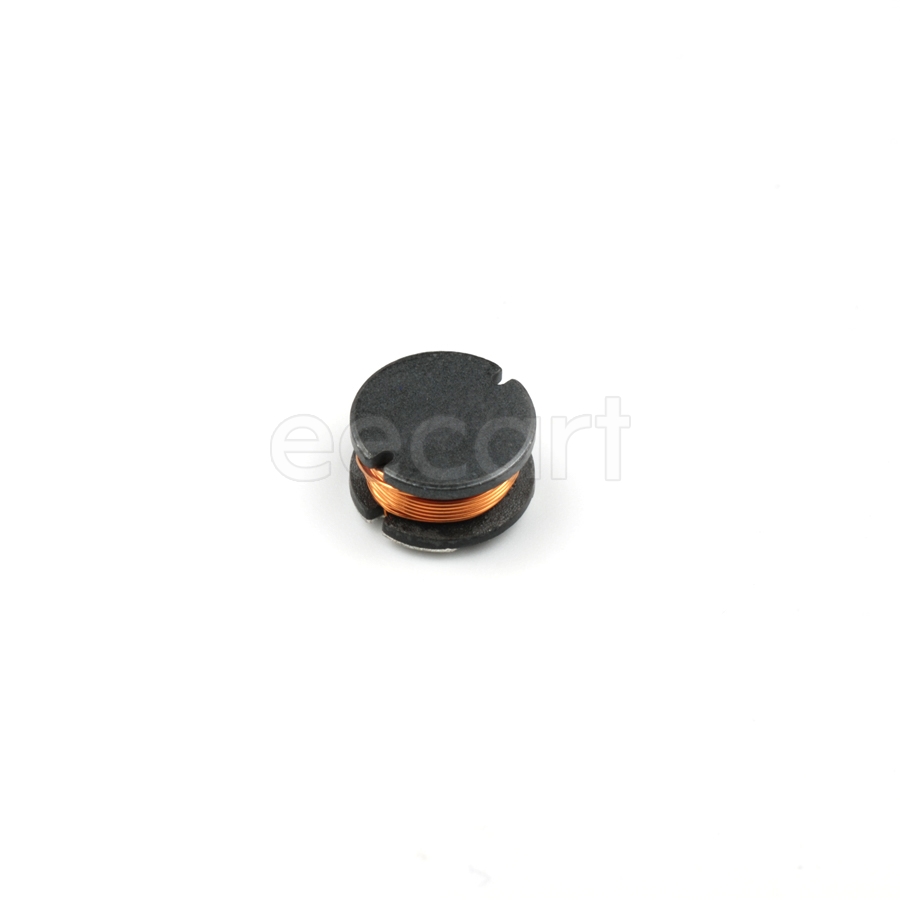

SDR1006-221KL
Manufacturer:
Bourns
Mfr.Part #:
SDR1006-221KL
Datasheet:
Description:
Fixed Inductors 9.80mmL×9.80mmW×5.80mmH SMD/SMT 220 µH 10 % 660 mA 730 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 10 % |
| Height - Seated (Max) | 5.8 mm |
| Length | 9.8044 mm |
| Width | 9.8044 mm |
| Termination | SMD/SMT |
| Diameter | 9.8 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Composition(Kit Type) | Wirewound |
| Height | 5.8 mm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 3.8 MHz |
| Q Factor | 12 |
| Current Rating | 660 mA |
| DC Resistance (DCR) | 730 mΩ |
| Test Frequency | 1 kHz |
| Military Standard | Not |
| Shielding | Unshielded |
| Inductance | 220 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 660 mA |
| Coil Resistance | 730 mΩ |
| inductance tolerance | 10 % |
| Max DC Current | 660 mA |
| DC Current | 660 mA |
| Saturation Current | 1.1 A |
| Schedule B | 8504500000 |
| Type | Wirewound |
Stock: 385
Distributors
pcbx
pcbxUnit Price$0.68141
Ext.Price$0.68141
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.68141 | $0.68141 |
| 10 | $0.55200 | $5.52000 |
| 25 | $0.50729 | $12.68225 |
| 50 | $0.46620 | $23.31000 |
| 100 | $0.42845 | $42.84500 |
| 300 | $0.40925 | $122.77500 |
| 500 | $0.39091 | $195.45500 |
