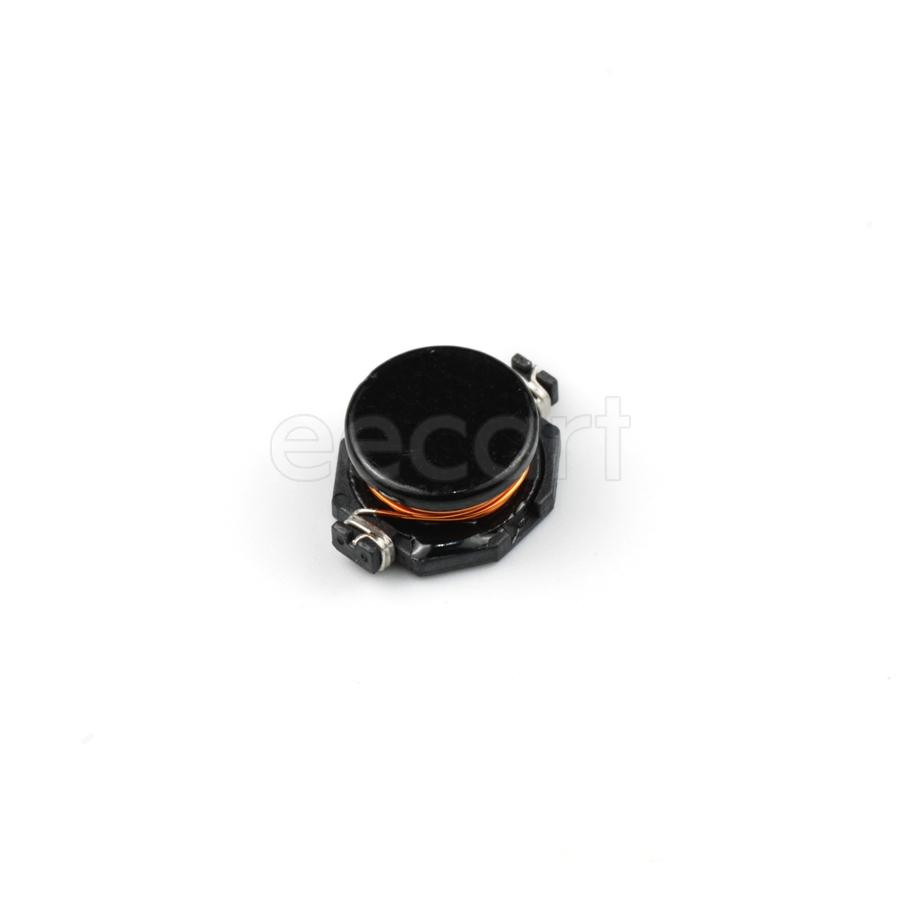

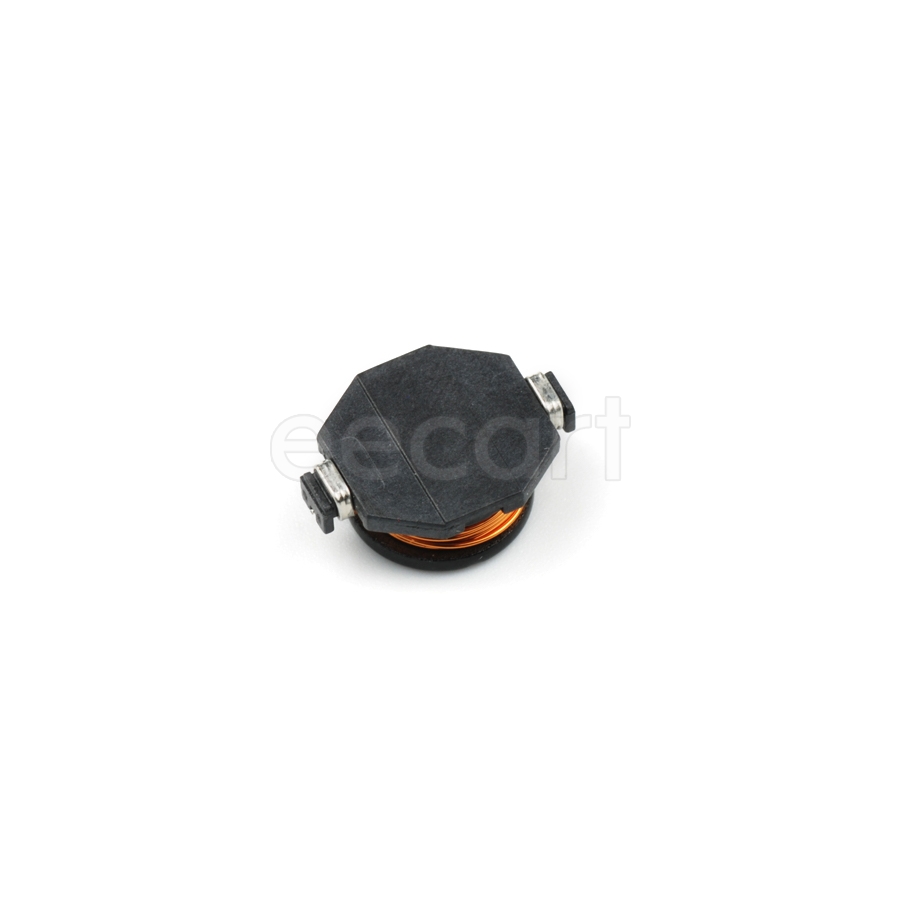

SDR2207-470KL
Manufacturer:
Bourns
Mfr.Part #:
SDR2207-470KL
Datasheet:
Description:
Fixed Inductors 22.00mmL×15.00mmW×7.80mmH SMD/SMT 47 µH 10 % 2.8 A 91.2 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 10 % |
| Height - Seated (Max) | 7.8 mm |
| Length | 22 mm |
| Width | 15 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Resistance | 91.2 MΩ |
| Height | 7 mm |
| Packaging | Reel |
| Depth | 15.3 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 9 MHz |
| Q Factor | 27 |
| Current Rating | 2.8 A |
| DC Resistance (DCR) | 91.2 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Unshielded |
| Inductance | 47 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 2.8 A |
| Coil Resistance | 91.2 mΩ |
| inductance tolerance | 10 % |
| Max DC Current | 2.8 A |
| DC Current | 2.8 A |
| Saturation Current | 5 A |
| Schedule B | 8504500000 |
| Composition(Kit Type) | Wirewound |
| Type | Wirewound |
Stock: 214
Distributors
pcbx
pcbxUnit Price$0.70104
Ext.Price$0.70104
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.70104 | $0.70104 |
| 10 | $0.57793 | $5.77930 |
| 25 | $0.50350 | $12.58750 |
| 50 | $0.43865 | $21.93250 |
| 100 | $0.38216 | $38.21600 |
