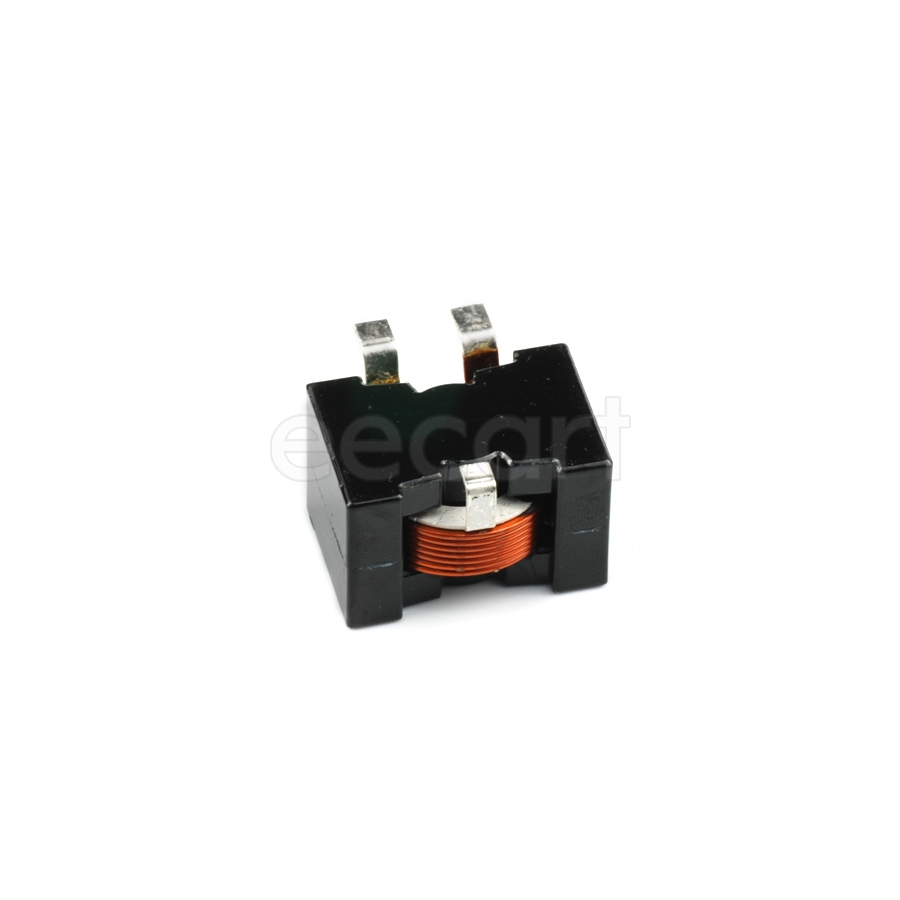

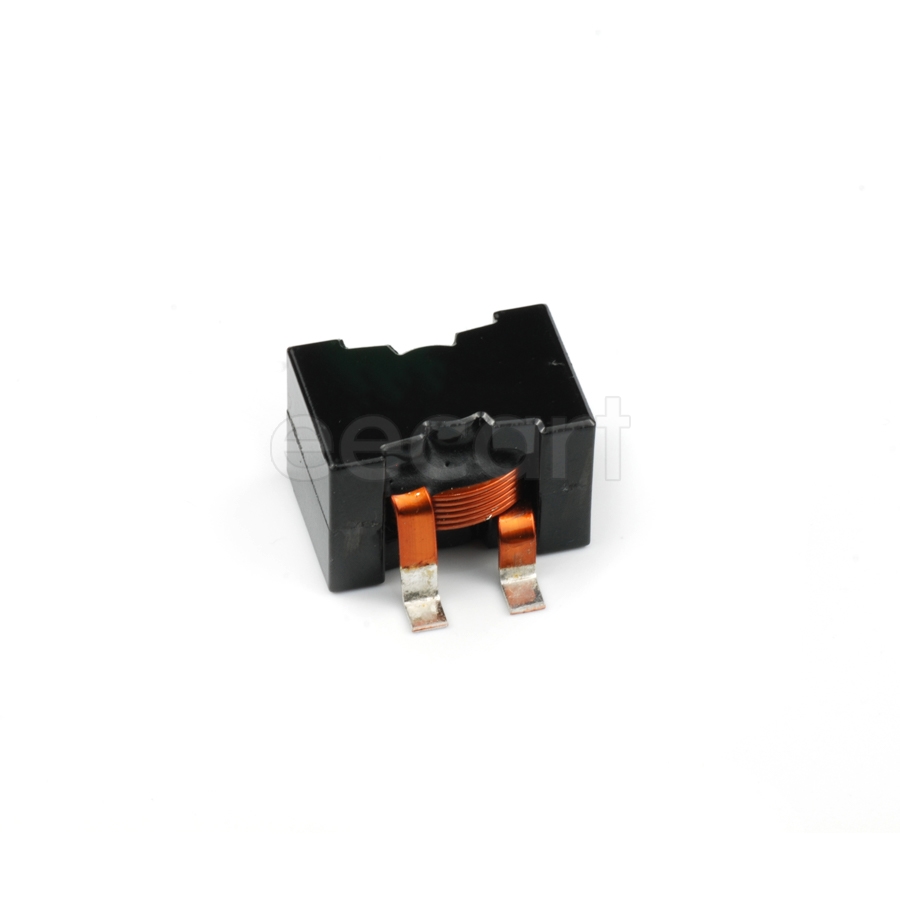

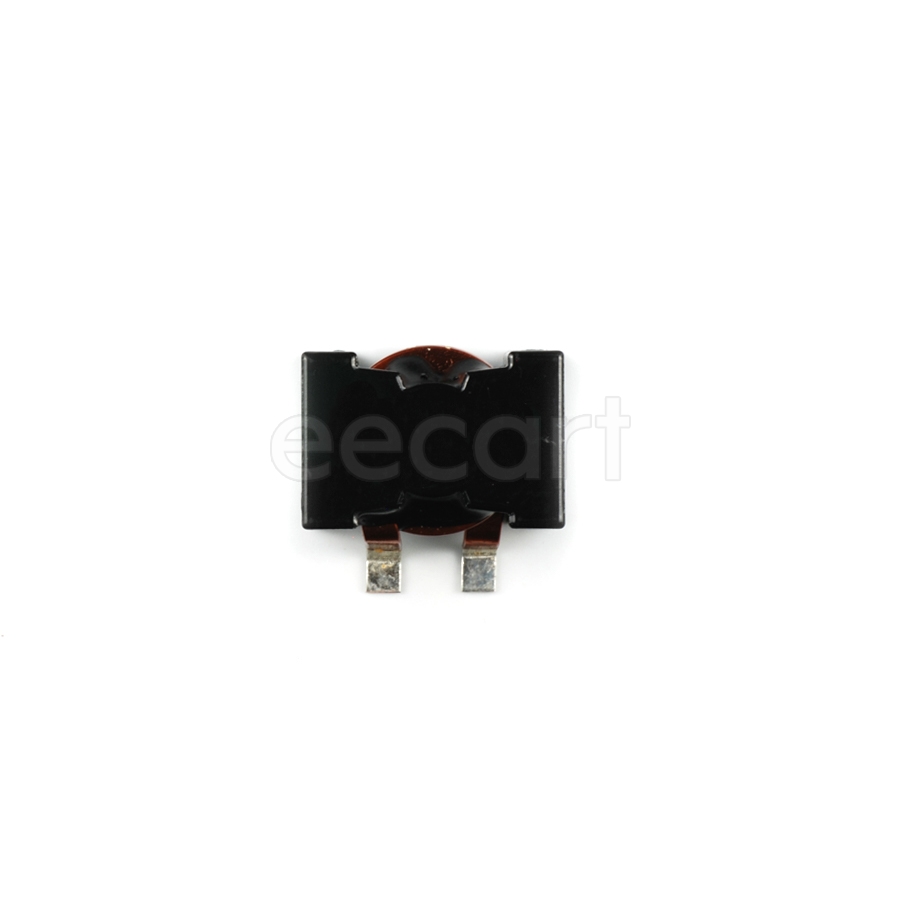

SER2918H-103KL
Manufacturer:
Coilcraft
Mfr.Part #:
SER2918H-103KL
Datasheet:
Description:
Fixed Inductors 27.90mmL×19.80mmW×17.78mmH SMD/SMT 10 µH 10 % 28 A 2.86 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 10 % |
| Length | 27.9 mm |
| Width | 19.8 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 17.78 mm |
| Packaging | Tray |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 20 MHz |
| Type | Wirewound |
| Current Rating | 28 A |
| DC Resistance (DCR) | 2.86 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 1 day ago) |
| Shielding | Shielded |
| Ambient Temperature Range High | 85 °C |
| Inductance | 10 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 28 A |
| inductance tolerance | 10 % |
| Max DC Current | 28 A |
| Series Resistance | 2.86 mΩ |
| Saturation Current | 32.1 A |
