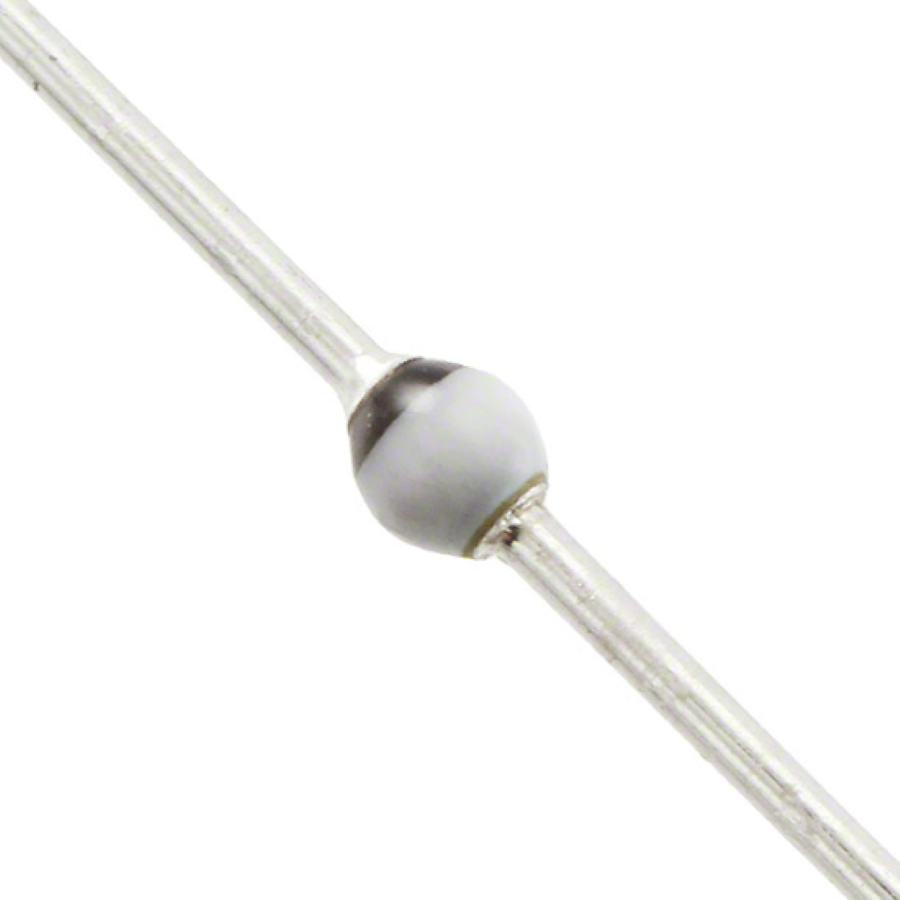

SF5408-TAP
Manufacturer:
Vishay
Mfr.Part #:
SF5408-TAP
Datasheet:
Description:
Rectifier Diodes SOD-64 Through Hole Fast Recovery Rectifiers Single Forward Current:3 A Forward Voltage:1.7 V Reverse Voltage:1 kV
| Parameter | Value |
|---|---|
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Packaging | Ammo Pack |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 1 kV |
| Type | Fast Recovery Rectifiers |
| Current | 23 A |
| Current Rating | 3 A |
| Forward Current | 3 A |
| Forward Voltage | 1.7 V |
| Reverse Recovery Time | 75 ns |
| Average Rectified Current | 3 A |
| Max Repetitive Reverse Voltage (Vrrm) | 1 kV |
| Element Configuration | Single |
| Max Surge Current | 150 A |
| Reverse Voltage | 1 kV |
| Peak Non-Repetitive Surge Current | 150 A |
| Reverse Current | 5 µA |
| Recovery Time | 75 ns |
Stock: 1
Distributors
pcbx
pcbxUnit Price$1.61789
Ext.Price$1.61789
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.61789 | $1.61789 |
| 10 | $1.58458 | $15.84580 |
| 25 | $1.57439 | $39.35975 |
| 50 | $1.56427 | $78.21350 |
| 100 | $1.55423 | $155.42300 |
