SFHR-02V-R
Manufacturer:
JST
Mfr.Part #:
SFHR-02V-R
Datasheet:
Description:

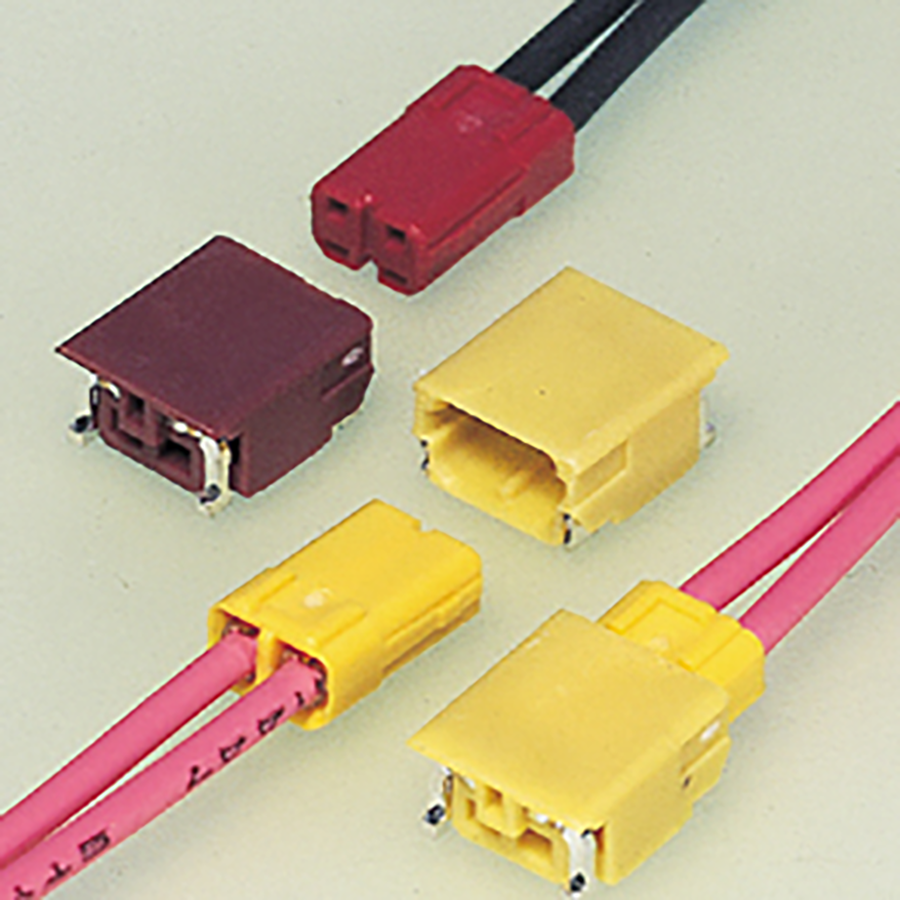

Headers and Wire Housings Free Hanging Receptacle, Socket Number of Positions:2 Pitch:1.8034 mm
| Parameter | Value |
|---|---|
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| Depth | 6.3 mm |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Pitch | 1.8034 mm |
| Max Current Rating | 4 A |
| Orientation | Straight |
| Color | Red |
| Gender | Receptacle |
| Number of Contacts | 2 |
| Connector Type | Receptacle, Socket |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 350 V |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 22 AWG |
| Housing Color | Red |
Stock: 10067
Distributors
pcbx
pcbxUnit Price$0.13267
Ext.Price$0.13267
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.13267 | $0.13267 |
| 10 | $0.11884 | $1.18840 |
| 50 | $0.10646 | $5.32300 |
| 100 | $0.09857 | $9.85700 |
| 500 | $0.09126 | $45.63000 |
| 1000 | $0.08449 | $84.49000 |
| 3000 | $0.07870 | $236.10000 |
| 5000 | $0.07330 | $366.50000 |
