SFML-145-T2-S-D
Manufacturer:
Samtec
Mfr.Part #:
SFML-145-T2-S-D
Datasheet:
Description:

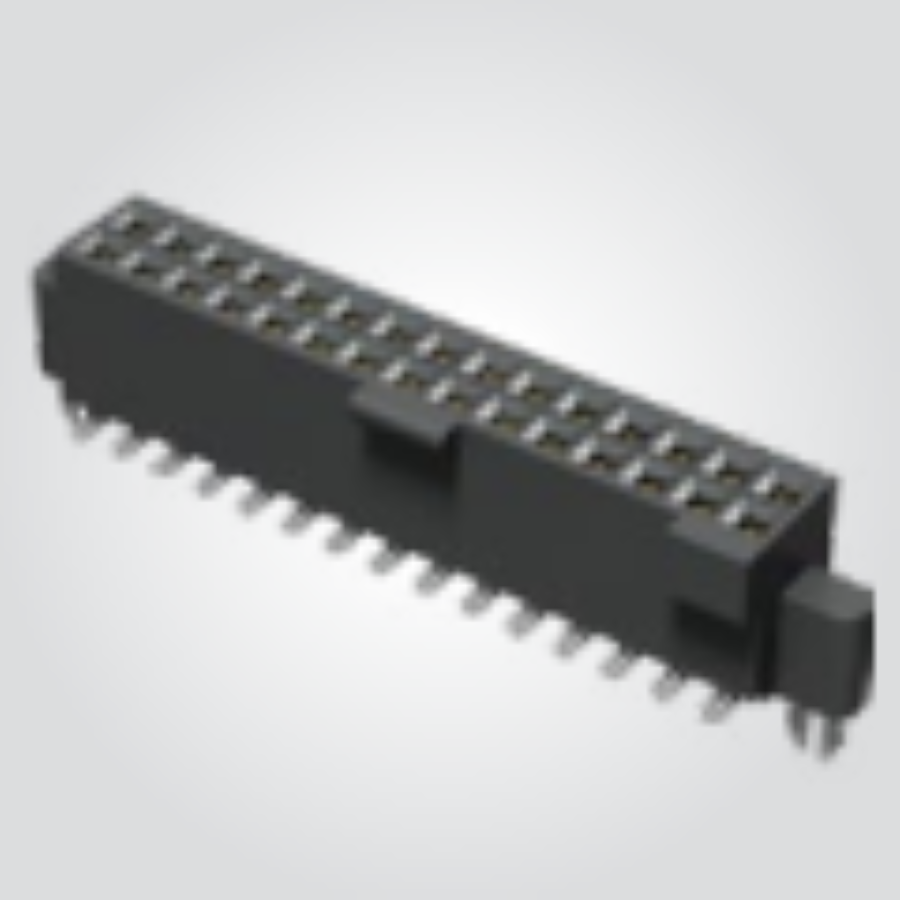

Headers and Wire Housings SMD/SMT Receptacle Number of Positions:90 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 350 V |
| Packaging | Tube |
| Voltage Rating | 350 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.27 mm |
| Current Rating | 5 A |
| Orientation | Straight |
| Color | Black |
| Gender | Socket (Female) |
| Number of Contacts | 90 |
| Connector Type | Receptacle |
| Number of Positions | 90 |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Housing Material | Plastic |
| Fastening Type | Ramp |
| Contact Resistance | 15 mΩ |
| Housing Color | Black |
