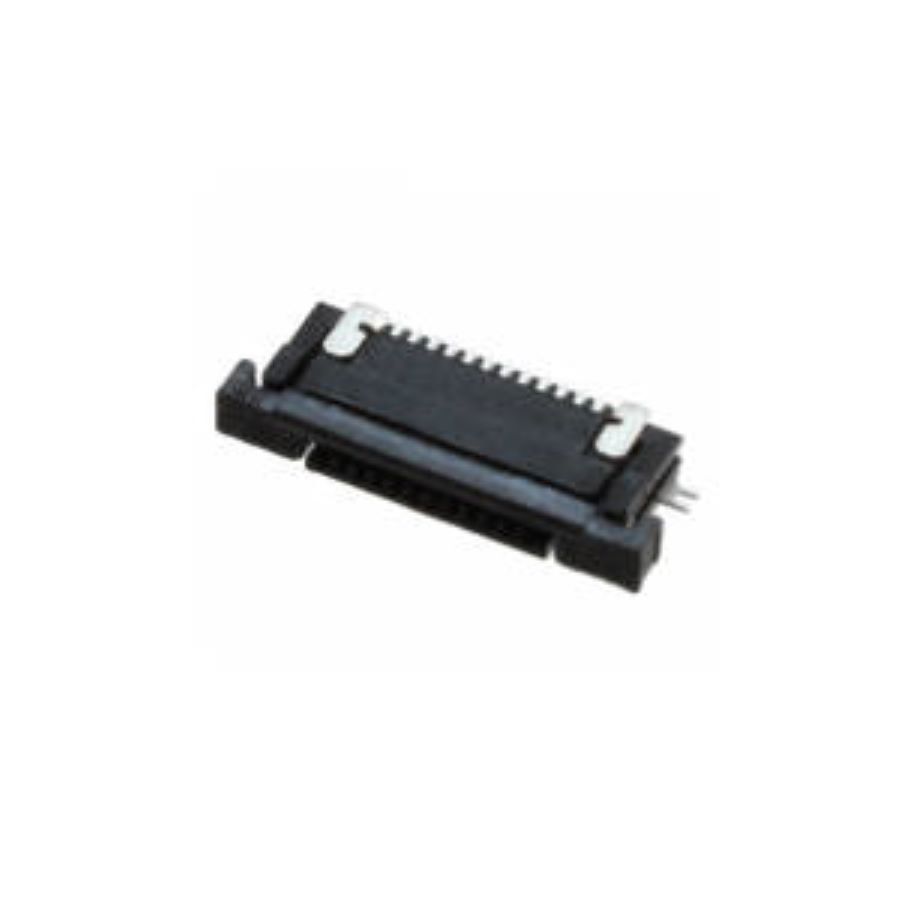

SFV30R-2STE1HLF
Manufacturer:
Amphenol
Mfr.Part #:
SFV30R-2STE1HLF
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:30 500 mA 50 V
| Parameter | Value |
|---|---|
| Length | 20.5 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 4.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 500 µm |
| Current Rating | 500 mA |
| Max Voltage Rating (DC) | 50 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Gender | Receptacle |
| Number of Contacts | 30 |
| Number of Positions | 30 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Contact Location | Top |
| Wire/Cable Type | Straight |
| Contact Resistance | 30 mΩ |
| Max Voltage Rating (AC) | 50 V |
| Actuator Material | Glass, Polyphenylene |
| Housing Color | Black |
| Mounting Angle | Right Angle |
Stock: 4360
Distributors
pcbx
pcbxUnit Price$0.44456
Ext.Price$0.44456
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.44456 | $0.44456 |
| 10 | $0.37617 | $3.76170 |
| 25 | $0.33513 | $8.37825 |
| 50 | $0.32735 | $16.36750 |
| 100 | $0.31974 | $31.97400 |
| 300 | $0.30216 | $90.64800 |
| 500 | $0.28554 | $142.77000 |
| 1000 | $0.24023 | $240.23000 |
| 3000 | $0.23938 | $718.14000 |
| 5000 | $0.22399 | $1119.95000 |
