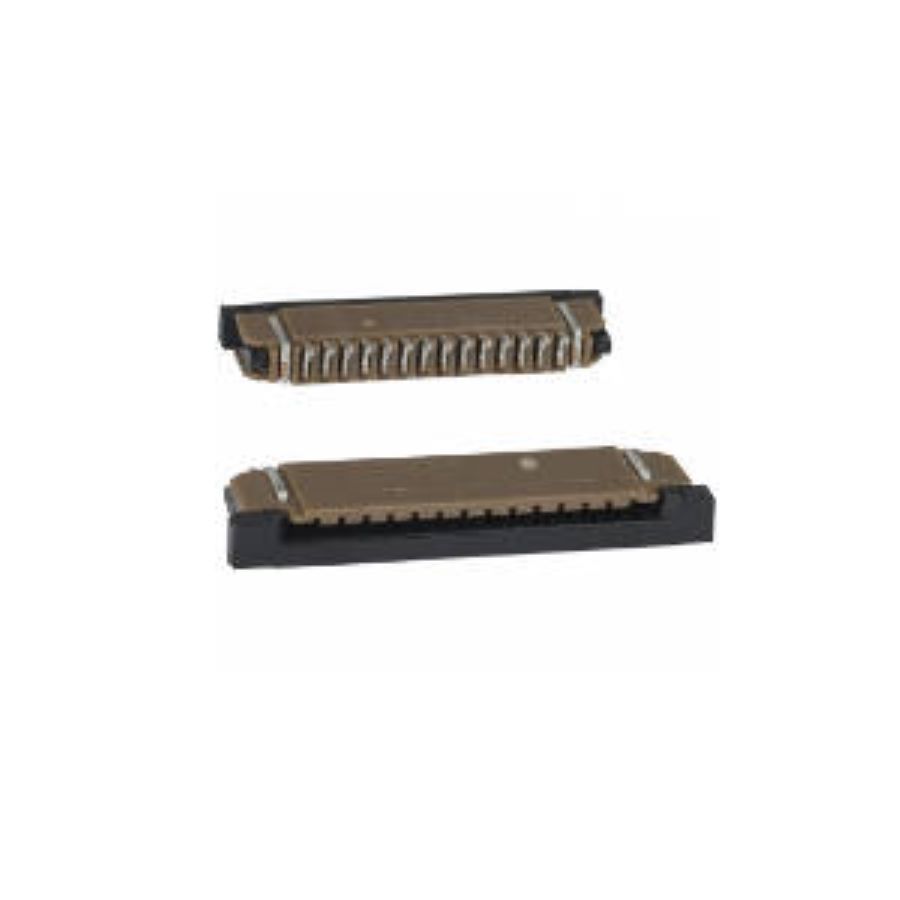

SFW14R-2STE1LF
Manufacturer:
Amphenol
Mfr.Part #:
SFW14R-2STE1LF
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:14 1 A 100 V
| Parameter | Value |
|---|---|
| Length | 19.8 mm |
| Width | 5.5 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 100 V |
| Packaging | Reel |
| Voltage Rating | 100 V |
| Depth | 6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 500 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1 mm |
| Current Rating | 1 A |
| Max Voltage Rating (DC) | 100 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Gender | Receptacle |
| Number of Contacts | 14 |
| Number of Positions | 14 |
| Number of Rows | 1 |
| Housing Material | Polyphenylene |
| Contact Location | Top |
| Contact Resistance | 30 mΩ |
| Max Voltage Rating (AC) | 100 V |
| Actuator Material | Glass, Polyphenylene |
| Housing Color | Brown |
| Schedule B | 8536694040 |
| Mounting Angle | Right Angle |
Stock: 3526
Distributors
pcbx
pcbxUnit Price$0.38814
Ext.Price$0.38814
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.38814 | $0.38814 |
| 10 | $0.32830 | $3.28300 |
| 25 | $0.29324 | $7.33100 |
| 50 | $0.28588 | $14.29400 |
| 100 | $0.27870 | $27.87000 |
| 300 | $0.26397 | $79.19100 |
| 500 | $0.25002 | $125.01000 |
| 1000 | $0.23681 | $236.81000 |
| 3000 | $0.21661 | $649.83000 |
| 5000 | $0.19814 | $990.70000 |
| 10000 | $0.18124 | $1812.40000 |
