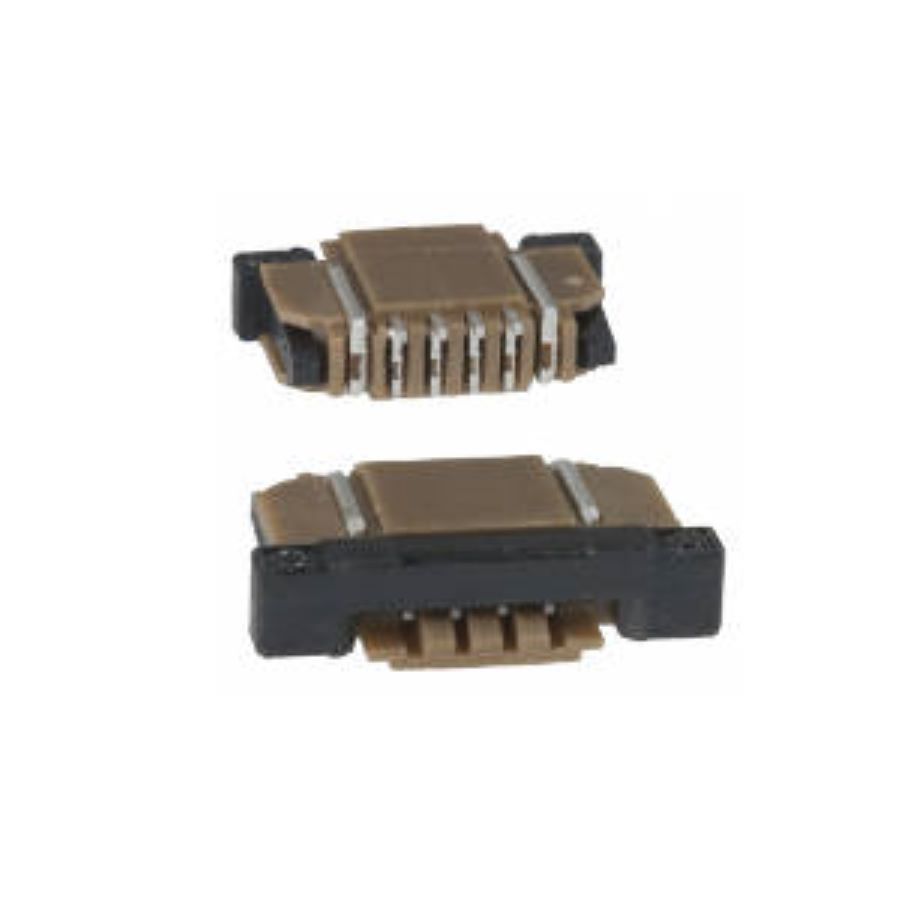

SFW4R-1STE1LF
Manufacturer:
Amphenol
Mfr.Part #:
SFW4R-1STE1LF
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:4 1 A 100 V
| Parameter | Value |
|---|---|
| Length | 9.8 mm |
| Width | 5.5 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 100 V |
| Packaging | Reel |
| Voltage Rating | 100 V |
| Depth | 7.3 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1 mm |
| Insulation Resistance | 500 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1 mm |
| Current Rating | 1 A |
| Max Voltage Rating (DC) | 100 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Gender | Receptacle |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Polyphenylene |
| Contact Location | Bottom |
| Contact Resistance | 30 mΩ |
| Max Voltage Rating (AC) | 100 V |
| Actuator Material | Glass, Polyphenylene |
| Housing Color | Brown |
| Mounting Angle | Right Angle |
Stock: 8426
Distributors
pcbx
pcbxUnit Price$0.20690
Ext.Price$0.20690
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.20690 | $0.20690 |
| 10 | $0.17611 | $1.76110 |
| 50 | $0.16279 | $8.13950 |
| 100 | $0.15047 | $15.04700 |
| 500 | $0.13845 | $69.22500 |
| 1000 | $0.12739 | $127.39000 |
| 3000 | $0.11950 | $358.50000 |
| 5000 | $0.11210 | $560.50000 |
| 10000 | $0.10516 | $1051.60000 |
