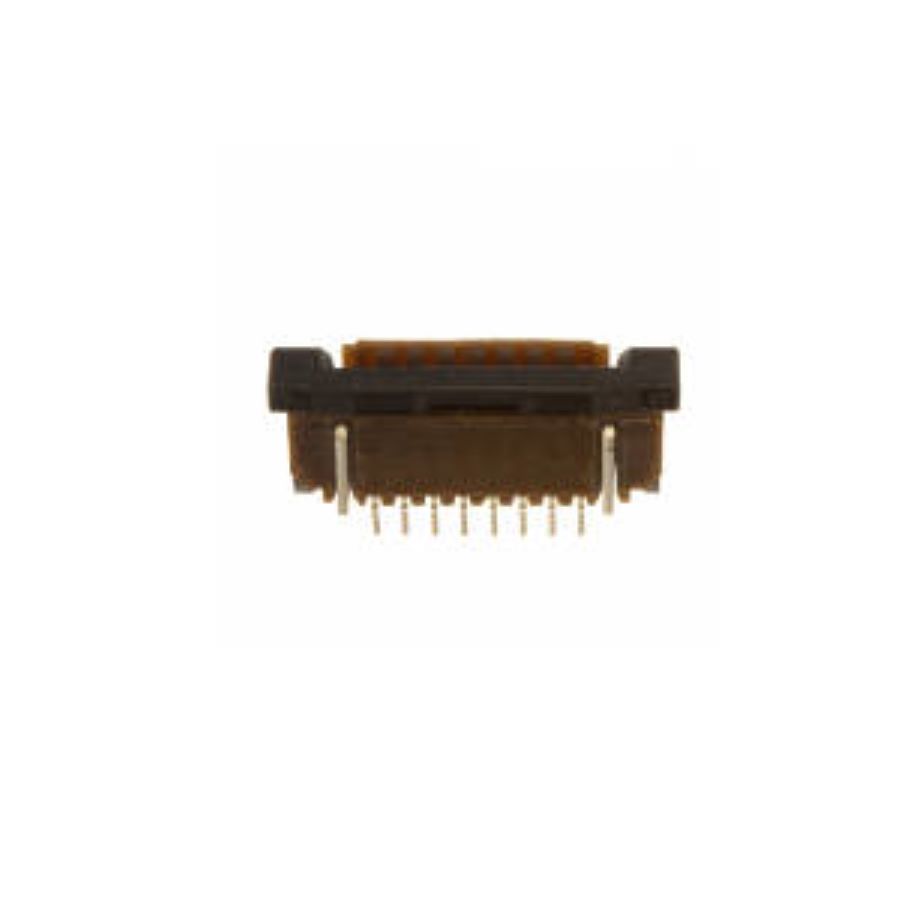

SFW8R-2STE1LF
Manufacturer:
Amphenol
Mfr.Part #:
SFW8R-2STE1LF
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:8 1 A 100 V
| Parameter | Value |
|---|---|
| Length | 13.8 mm |
| Width | 5.5 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 100 V |
| Height | 2.9 mm |
| Packaging | Reel |
| Voltage Rating | 100 V |
| Depth | 6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 500 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze, Tin |
| Pitch | 1 mm |
| Current Rating | 1 A |
| Max Voltage Rating (DC) | 100 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Gender | Receptacle |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | Polyphenylene |
| Contact Location | Top |
| Contact Resistance | 30 mΩ |
| Max Voltage Rating (AC) | 100 V |
| Actuator Material | Glass, Polyphenylene |
| Housing Color | Brown |
| Mounting Angle | Right Angle |
