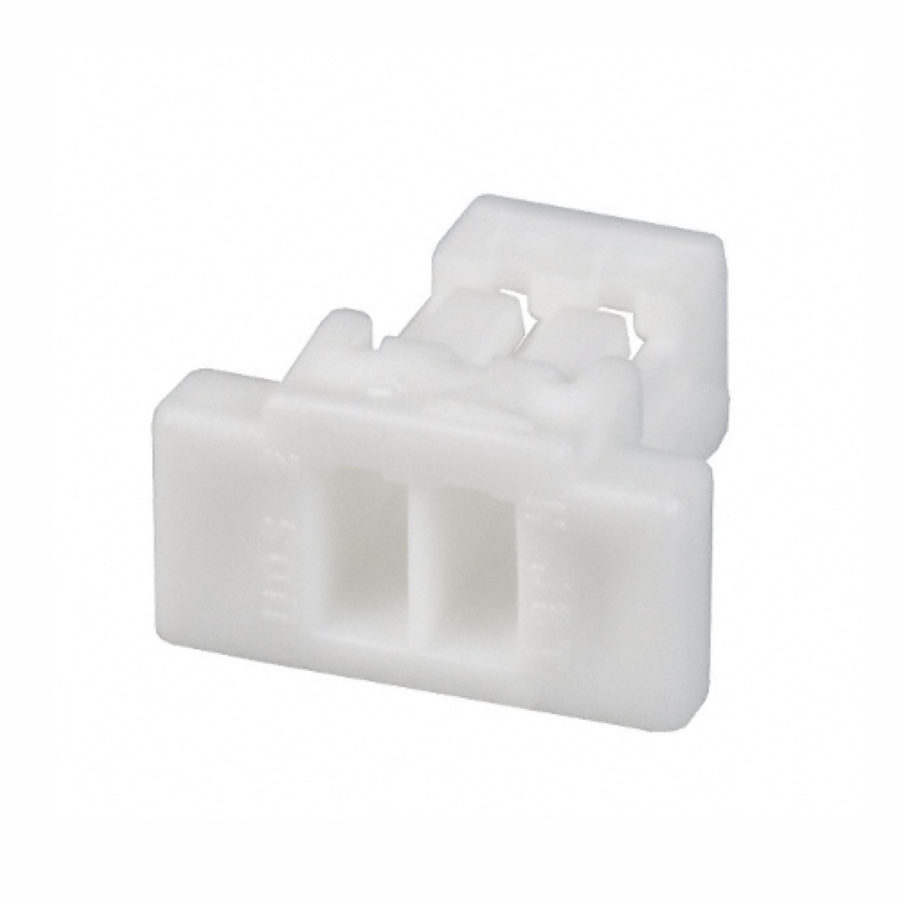

SHR-03V-S-B
Manufacturer:
JST
Mfr.Part #:
SHR-03V-S-B
Datasheet:
Description:
Headers and Wire Housings Free Hanging Receptacle, Socket Number of Positions:3 Pitch:990.6 µm
| Parameter | Value |
|---|---|
| Length | 6 mm |
| Width | 2.8 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 50 V |
| Number of Pins | 3 |
| Height | 1.016 mm |
| Material | PBT |
| Packaging | Bulk |
| Depth | 5 mm |
| RoHS | Compliant |
| Lead Pitch | 1 mm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Pitch | 990.6 µm |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | White |
| Gender | Female |
| Number of Contacts | 3 |
| Body Material | PBT |
| Connector Type | Receptacle, Socket |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | PBT |
| Contact Resistance | 20 mΩ |
Stock: 3128
Distributors
pcbx
pcbxUnit Price$0.06658
Ext.Price$0.06658
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.06658 | $0.06658 |
| 10 | $0.05167 | $0.51670 |
| 50 | $0.04586 | $2.29300 |
| 100 | $0.04367 | $4.36700 |
| 500 | $0.03899 | $19.49500 |
| 1000 | $0.03622 | $36.22000 |
| 3000 | $0.03365 | $100.95000 |
