SHV2920P500-30-AA
Manufacturer:
PTTC
Mfr.Part #:
SHV2920P500-30-AA
Datasheet:
Description:

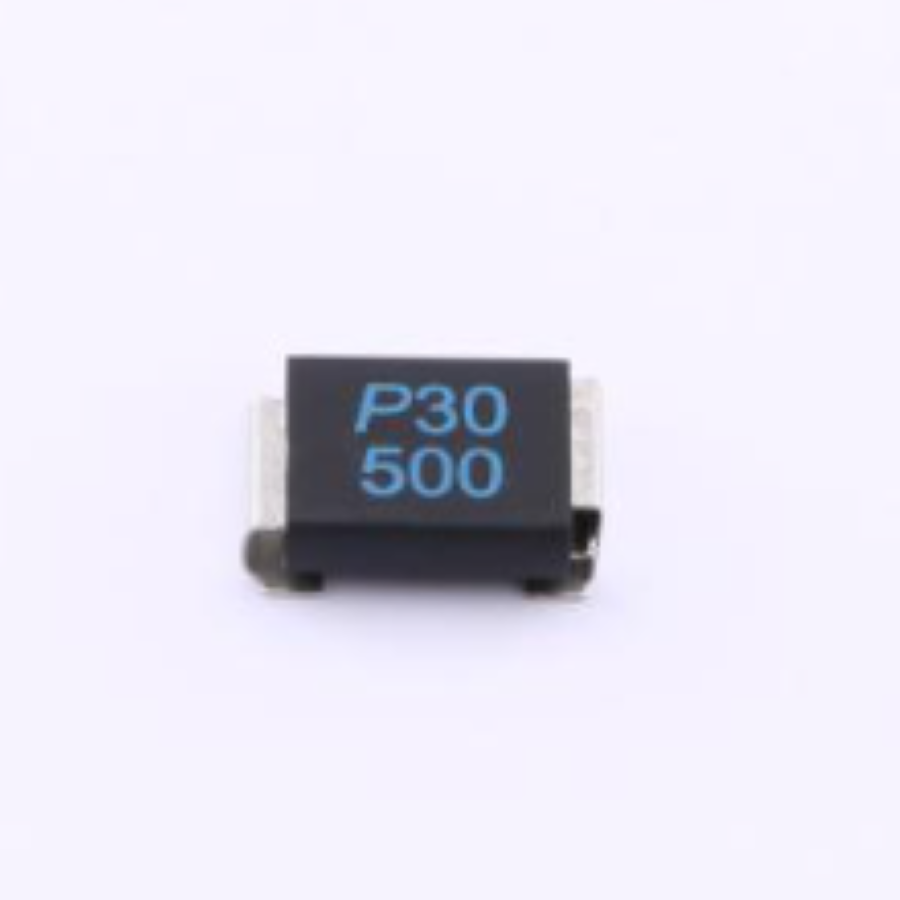

PTC Resettable Fuses 2920 SMD/SMT Hold Current:5 A Voltage Rating:30 V Trip Current:12.5 A
| Parameter | Value |
|---|---|
| Packaging | Reel |
| Voltage Rating | 30 V |
| Thickness | 3.2 mm |
| RoHS | Compliant |
| Max Current Rating | 30 A |
| Hold Current | 5 A |
| Time to Trip | 10 s |
| Trip Current | 12.5 A |
| Maximum Resistance 1 Hour (R1max) | 20 mΩ |
| Minimum Resistance Initial (Rmin) | 3 mΩ |
| Lead Spacing | 6.6 mm |
Stock: 11761
Distributors
pcbx
pcbxUnit Price$1.03507
Ext.Price$1.03507
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.03507 | $1.03507 |
| 10 | $0.85498 | $8.54980 |
| 25 | $0.79233 | $19.80825 |
| 50 | $0.73427 | $36.71350 |
| 100 | $0.68046 | $68.04600 |
| 300 | $0.63946 | $191.83800 |
| 500 | $0.60092 | $300.46000 |
| 1000 | $0.57346 | $573.46000 |
