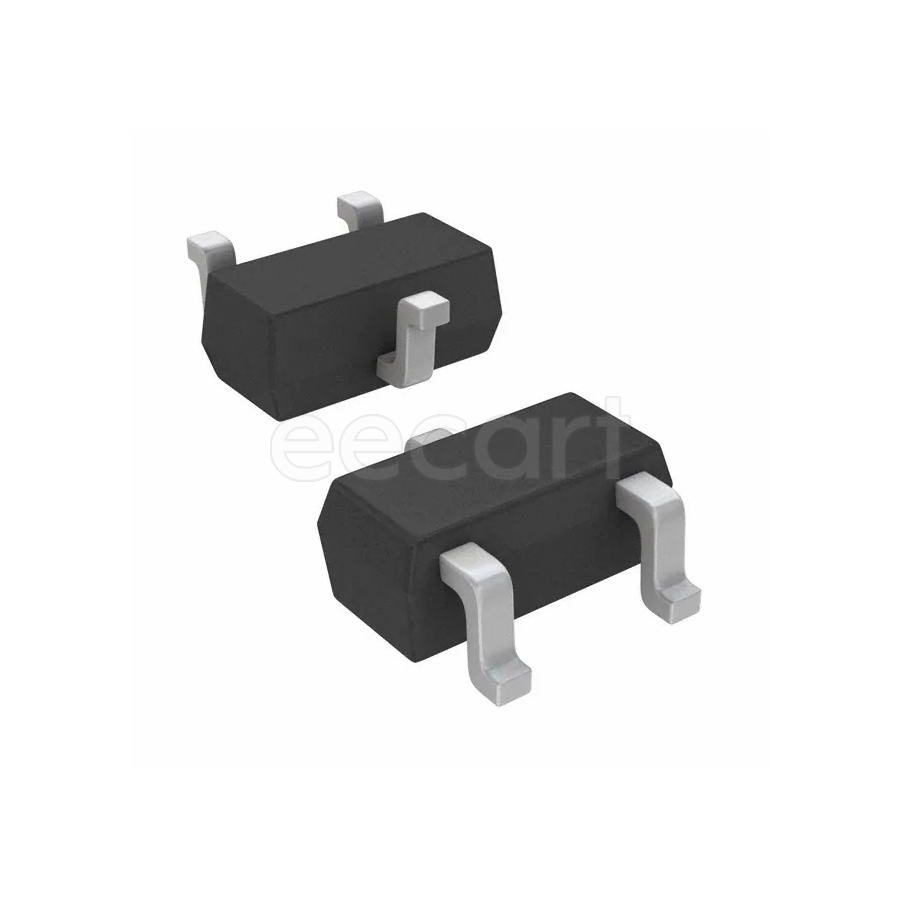

SI1012R-T1-GE3
Manufacturer:
Vishay
Mfr.Part #:
SI1012R-T1-GE3
Datasheet:
Description:
MOSFETs SOT-416 SMD/SMT N-Channel number of channels:1 150 mW 20 V Continuous Drain Current (ID):600 mA 750 pC
| Parameter | Value |
|---|---|
| Length | 1.58 mm |
| Width | 760 µm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 3 |
| Resistance | 700 MΩ |
| Height | 800 µm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Number of Elements | 1 |
| Max Power Dissipation | 150 mW |
| Power Dissipation | 150 mW |
| Threshold Voltage | 800 mV |
| Number of Channels | 1 |
| Continuous Drain Current (ID) | 600 mA |
| Rds On Max | 700 mΩ |
| Drain to Source Voltage (Vdss) | 20 V |
| Turn-On Delay Time | 5 ns |
| Turn-Off Delay Time | 25 ns |
| Element Configuration | Single |
| Fall Time | 5 ns |
| Rise Time | 5 ns |
| Gate Charge | 750 pC |
| Drain to Source Resistance | 410 mΩ |
| Max Junction Temperature (Tj) | 150 °C |
| Gate to Source Voltage (Vgs) | 6 V |
| Drain to Source Breakdown Voltage (Vds) | 20 V |
| Gate to Source Threshold Voltage | 450 mV |
| FET Type(Transistor Polarity) | N-Channel |
Stock: 1
Distributors
pcbx
pcbxUnit Price$0.47534
Ext.Price$0.47534
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.47534 | $0.47534 |
| 10 | $0.29580 | $2.95800 |
| 50 | $0.23800 | $11.90000 |
| 100 | $0.19150 | $19.15000 |
| 500 | $0.14620 | $73.10000 |
| 1000 | $0.13080 | $130.80000 |
| 3000 | $0.12054 | $361.62000 |
| 5000 | $0.11120 | $556.00000 |
| 10000 | $0.10259 | $1025.90000 |
