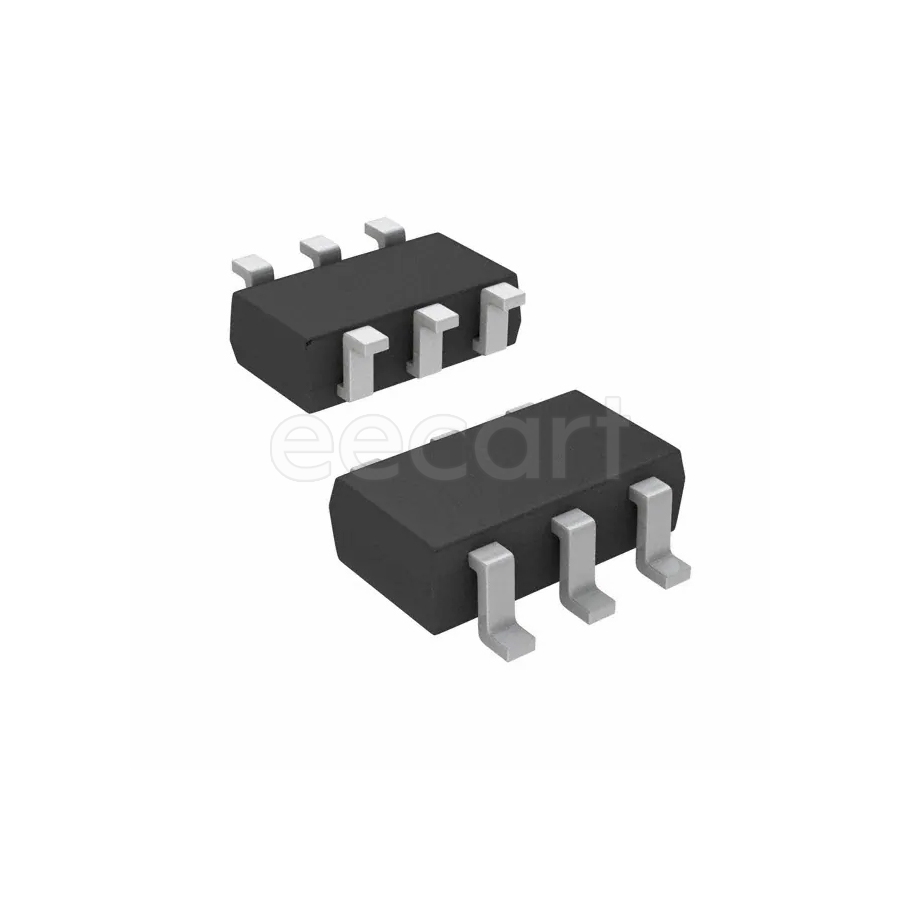

SI3865DDV-T1-GE3
Manufacturer:
Vishay
Mfr.Part #:
SI3865DDV-T1-GE3
Datasheet:
Description:
Hot Swap Controllers TSOP-6 SMD/SMT number of channels:1 Load Switches
| Parameter | Value |
|---|---|
| Length | 3.1 mm |
| Width | 1.7 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 6 |
| Resistance | 165 mΩ |
| Height | 1 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 19.986414 mg |
| Current Rating | 2.8 A |
| Interface | On/Off |
| Output Current | 1 A |
| Max Power Dissipation | 830 mW |
| Max Supply Voltage | 12 V |
| Min Supply Voltage | 1.5 V |
| Power Dissipation | 830 mW |
| Max Output Current | 2.8 A |
| Number of Channels | 1 |
| Output Configuration | High Side |
| Number of Outputs | 1 |
| Nominal Input Voltage | 12 V |
| Type | Load Switches |
| Features | Slew Rate Controlled |
Stock: 1085
Distributors
pcbx
pcbxUnit Price$0.42077
Ext.Price$0.42077
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.42077 | $0.42077 |
| 10 | $0.33293 | $3.32930 |
| 25 | $0.30354 | $7.58850 |
| 50 | $0.27674 | $13.83700 |
| 100 | $0.25230 | $25.23000 |
| 300 | $0.24139 | $72.41700 |
| 500 | $0.23096 | $115.48000 |
| 1000 | $0.21718 | $217.18000 |
