SI5476DU-T1-GE3
Manufacturer:
Vishay
Mfr.Part #:
SI5476DU-T1-GE3
Datasheet:
Description:

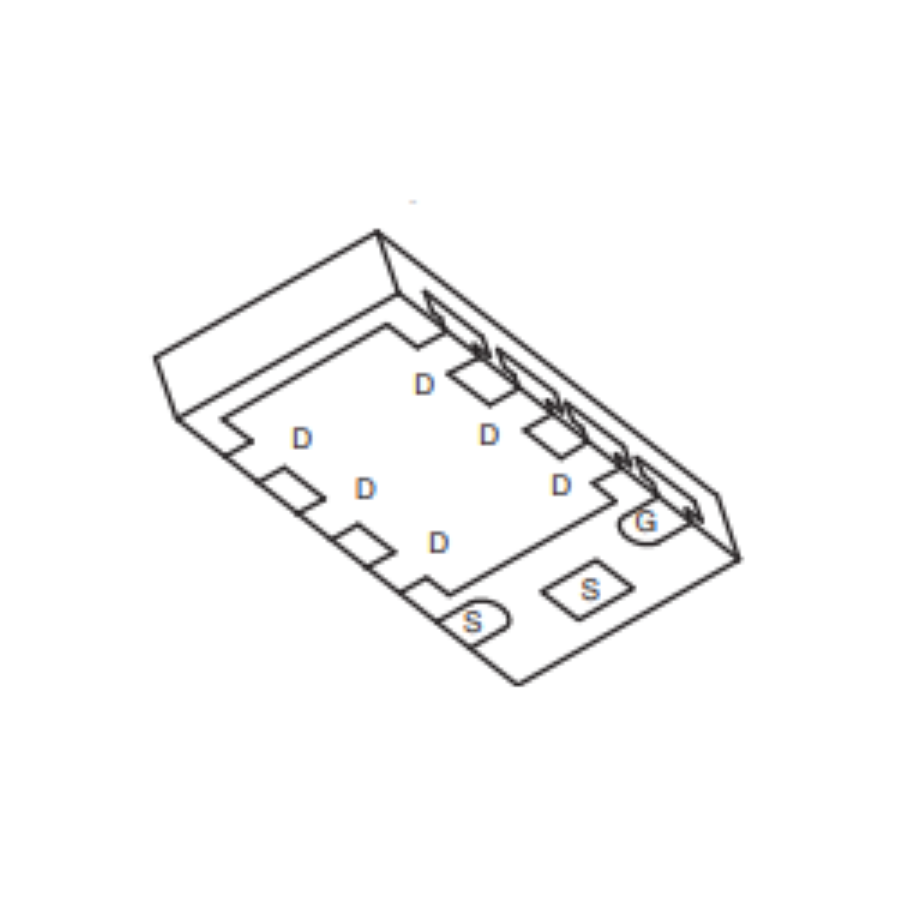

MOSFETs PowerPAK ChipFET-8 SMD/SMT N-Channel number of channels:1 3.1 W 60 V Continuous Drain Current (ID):7 A 32 nC
| Parameter | Value |
|---|---|
| Length | 3 mm |
| Width | 1.9 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 8 |
| Height | 750 µm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Number of Elements | 1 |
| Max Power Dissipation | 3.1 W |
| Power Dissipation | 3.1 W |
| Threshold Voltage | 3 V |
| Number of Channels | 1 |
| Input capacitance | 1.1 nF |
| Continuous Drain Current (ID) | 7 A |
| Rds On Max | 34 mΩ |
| Drain to Source Voltage (Vdss) | 60 V |
| Turn-On Delay Time | 10 ns |
| Turn-Off Delay Time | 22 ns |
| Element Configuration | Single |
| Fall Time | 10 ns |
| Rise Time | 15 ns |
| Gate Charge | 32 nC |
| Drain to Source Resistance | 34 mΩ |
| Gate to Source Voltage (Vgs) | 20 V |
| Drain to Source Breakdown Voltage (Vds) | 60 V |
| Schedule B | 8541290080 |
| Gate to Source Threshold Voltage | 1 V |
| FET Type(Transistor Polarity) | N-Channel |
Stock: 1667
Distributors
pcbx
pcbxUnit Price$1.16441
Ext.Price$1.16441
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.16441 | $1.16441 |
| 10 | $0.74464 | $7.44640 |
| 25 | $0.65138 | $16.28450 |
| 50 | $0.56980 | $28.49000 |
| 100 | $0.49843 | $49.84300 |
| 300 | $0.44370 | $133.11000 |
| 500 | $0.39497 | $197.48500 |
| 1000 | $0.36163 | $361.63000 |
| 3000 | $0.31889 | $956.67000 |
| 5000 | $0.29751 | $1487.55000 |
