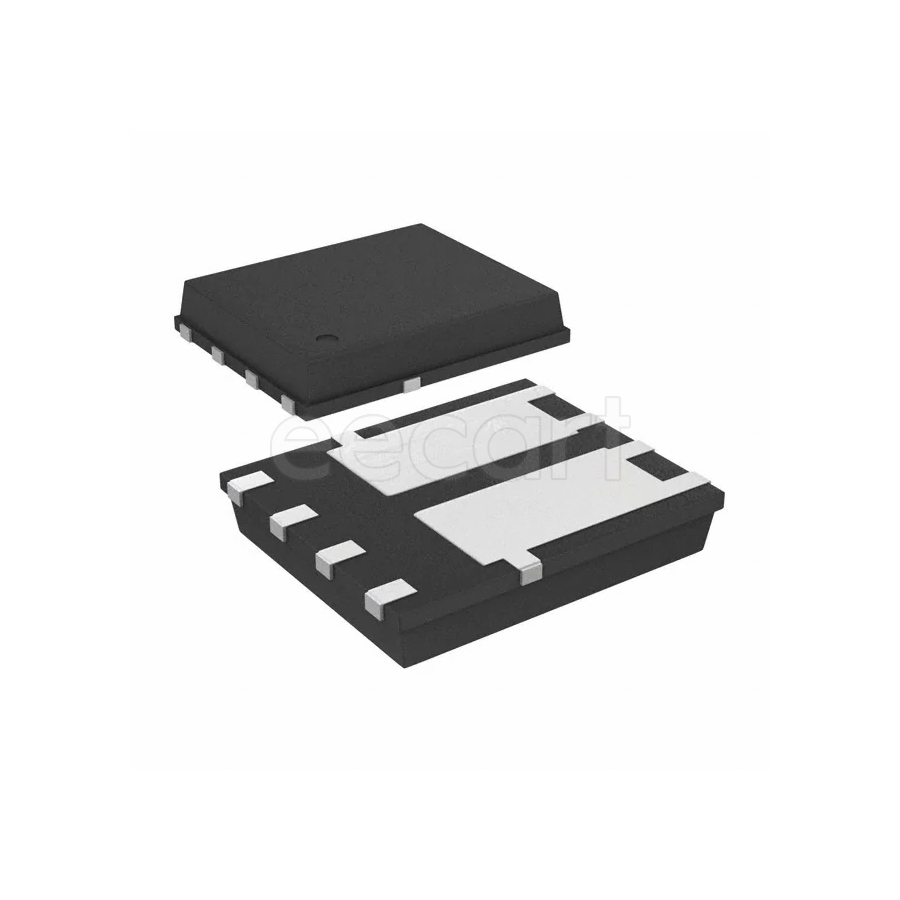

SI7997DP-T1-GE3
Manufacturer:
Vishay
Mfr.Part #:
SI7997DP-T1-GE3
Datasheet:
Description:
MOSFETs PowerPAK SO-8 Dual SMD/SMT P-Channel number of channels:2 3.5 W -30 V Continuous Drain Current (ID):-20.8 A 106 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 8 |
| Resistance | 5.5 mΩ |
| Height | 1.12 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 506.605978 mg |
| Number of Elements | 2 |
| Max Power Dissipation | 46 W |
| Power Dissipation | 3.5 W |
| Threshold Voltage | -2.2 V |
| Number of Channels | 2 |
| Input capacitance | 6.2 nF |
| Continuous Drain Current (ID) | -20.8 A |
| Rds On Max | 5.5 mΩ |
| Drain to Source Voltage (Vdss) | -30 V |
| Turn-On Delay Time | 15 ns |
| Turn-Off Delay Time | 115 ns |
| Element Configuration | Dual |
| Gate Charge | 106 nC |
| Drain to Source Resistance | 4.5 mΩ |
| Max Junction Temperature (Tj) | 150 °C |
| Gate to Source Voltage (Vgs) | 20 V |
| Drain to Source Breakdown Voltage (Vds) | -30 V |
| Schedule B | 8541290080 |
| Gate to Source Threshold Voltage | 1 V |
| FET Type(Transistor Polarity) | P-Channel |
Stock: 928
Distributors
pcbx
pcbxUnit Price$1.90752
Ext.Price$1.90752
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.90752 | $1.90752 |
| 10 | $1.55424 | $15.54240 |
| 25 | $1.39177 | $34.79425 |
| 50 | $1.24628 | $62.31400 |
| 100 | $1.11599 | $111.59900 |
| 300 | $1.06298 | $318.89400 |
| 500 | $1.01249 | $506.24500 |
| 1000 | $0.96748 | $967.48000 |
