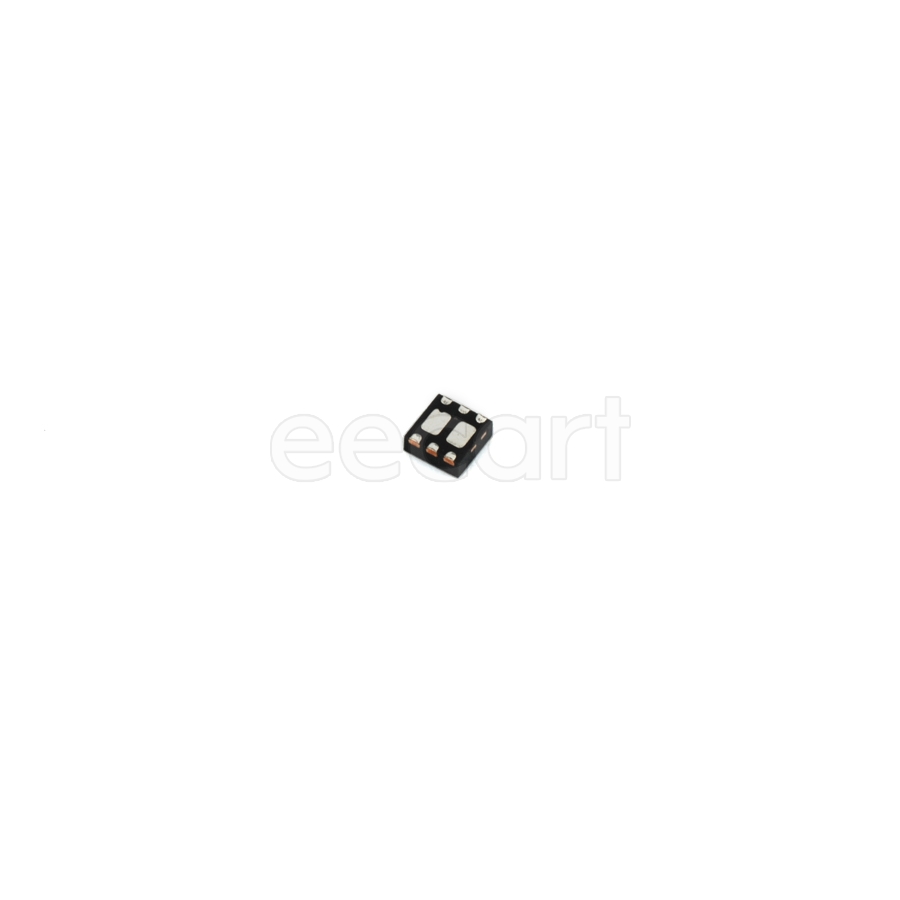

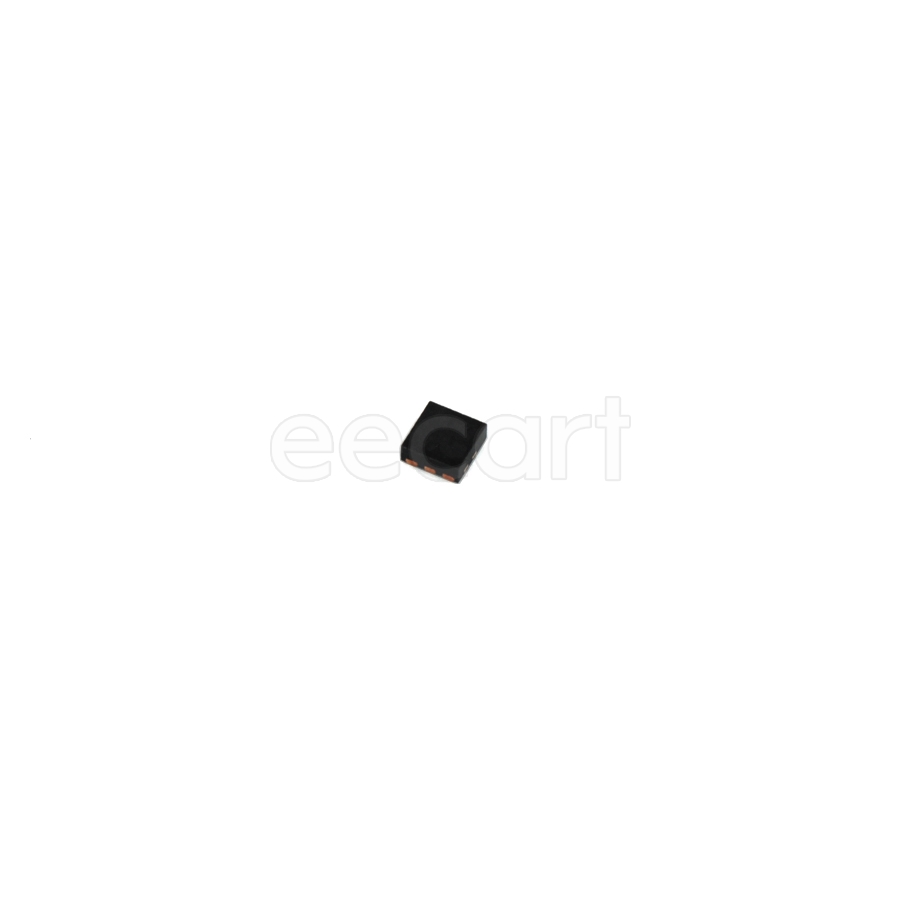

SIA527DJ-T1-GE3
Manufacturer:
Vishay
Mfr.Part #:
SIA527DJ-T1-GE3
Datasheet:
Description:
MOSFETs PowerPAK SC-70-6 SMD/SMT N-Channel, P-Channel number of channels:2 7.8 W 12 V Continuous Drain Current (ID):4.5 A 15 nC, 26 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Resistance | 710 µΩ |
| Packaging | Reel |
| RoHS | Compliant |
| Max Power Dissipation | 7.8 W |
| Power Dissipation | 7.8 W |
| Number of Channels | 2 |
| Input capacitance | 500 pF |
| Continuous Drain Current (ID) | 4.5 A |
| Rds On Max | 29 mΩ |
| Drain to Source Voltage (Vdss) | 12 V |
| FET Type(Transistor Polarity) | N-Channel, P-Channel |
| Turn-On Delay Time | 10 ns |
| Turn-Off Delay Time | 22 ns |
| Element Configuration | Dual |
| Rise Time | 10 ns |
| Gate Charge | 15 nC, 26 nC |
| Drain to Source Resistance | 41 mΩ |
| Gate to Source Voltage (Vgs) | 8 V |
| Drain to Source Breakdown Voltage (Vds) | 12 V |
| Schedule B | 8541290080 |
| Gate to Source Threshold Voltage | 400 mV |
Stock: 1623
Distributors
pcbx
pcbxUnit Price$0.46042
Ext.Price$0.46042
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.46042 | $0.46042 |
| 10 | $0.36499 | $3.64990 |
| 25 | $0.33232 | $8.30800 |
| 50 | $0.30257 | $15.12850 |
| 100 | $0.27548 | $27.54800 |
| 300 | $0.26379 | $79.13700 |
| 500 | $0.25259 | $126.29500 |
| 1000 | $0.23881 | $238.81000 |
