SIS413DN-T1-GE3
Manufacturer:
Vishay
Mfr.Part #:
SIS413DN-T1-GE3
Datasheet:
Description:

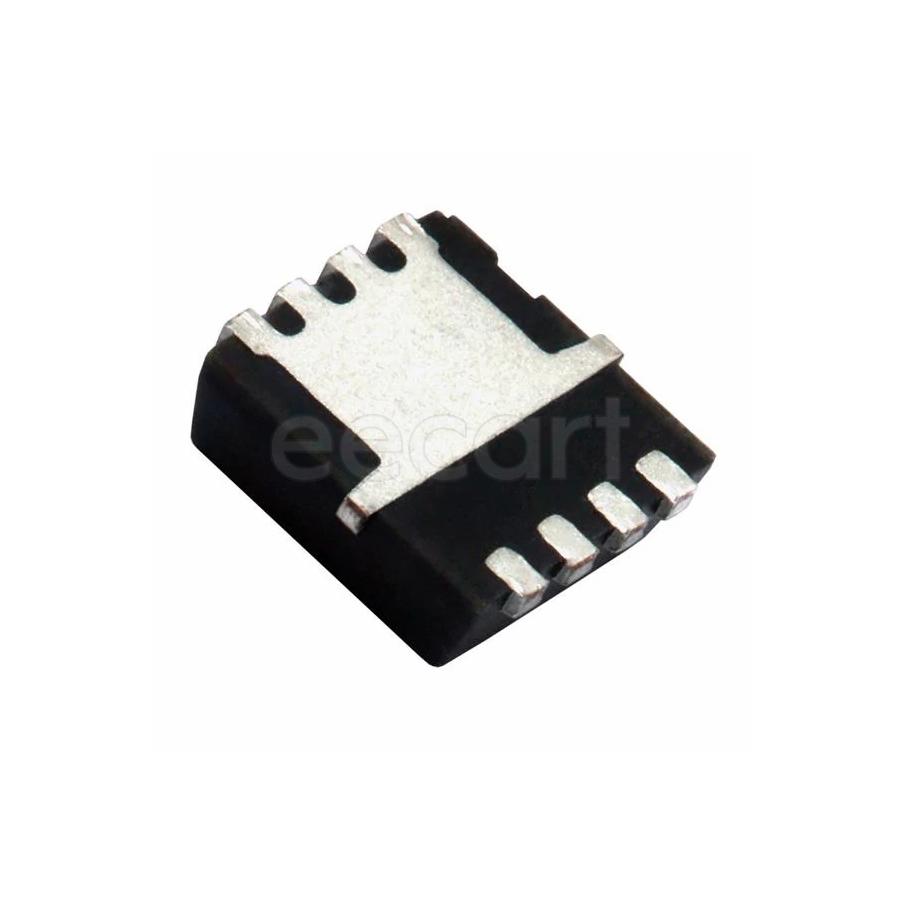

MOSFETs PowerPAK 1212-8 SMD/SMT P-Channel number of channels:1 3.7 W -30 V Continuous Drain Current (ID):-18 A 73 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 8 |
| Height | 1.17 mm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Max Power Dissipation | 52 W |
| Power Dissipation | 3.7 W |
| Threshold Voltage | -2.5 V |
| Number of Channels | 1 |
| Input capacitance | 4.28 nF |
| Continuous Drain Current (ID) | -18 A |
| Rds On Max | 9.4 mΩ |
| Drain to Source Voltage (Vdss) | -30 V |
| Turn-On Delay Time | 11 ns |
| Turn-Off Delay Time | 45 ns |
| Element Configuration | Single |
| Rise Time | 11 ns |
| Gate Charge | 73 nC |
| Drain to Source Resistance | 7.6 mΩ |
| Max Junction Temperature (Tj) | 150 °C |
| Gate to Source Voltage (Vgs) | 20 V |
| Drain to Source Breakdown Voltage (Vds) | -30 V |
| Schedule B | 8541290080 |
| Gate to Source Threshold Voltage | 1 V |
| FET Type(Transistor Polarity) | P-Channel |
Stock: 1788
Distributors
pcbx
pcbxUnit Price$0.57552
Ext.Price$0.57552
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.57552 | $0.57552 |
| 10 | $0.47558 | $4.75580 |
| 25 | $0.44174 | $11.04350 |
| 50 | $0.41031 | $20.51550 |
| 100 | $0.38111 | $38.11100 |
| 300 | $0.34996 | $104.98800 |
| 500 | $0.32136 | $160.68000 |
| 1000 | $0.30613 | $306.13000 |
