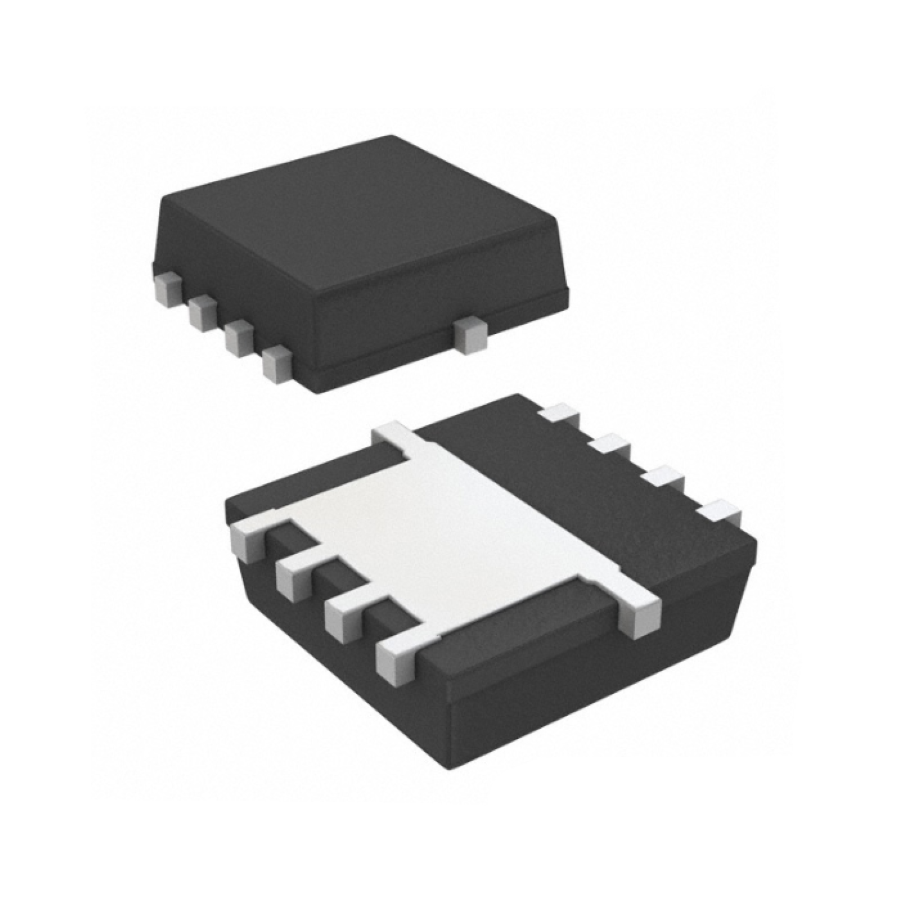

SISA72DN-T1-GE3
Manufacturer:
Vishay
Mfr.Part #:
SISA72DN-T1-GE3
Datasheet:
Description:
MOSFETs PowerPAK-1212-8 SMD/SMT N-Channel number of channels:1 52 W 40 V Continuous Drain Current (ID):60 A 41.5 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Power Dissipation | 52 W |
| Number of Channels | 1 |
| Input capacitance | 3240 pF |
| Continuous Drain Current (ID) | 60 A |
| FET Type(Transistor Polarity) | N-Channel |
| Gate Charge | 41.5 nC |
| Drain to Source Resistance | 3.5 mΩ |
| Gate to Source Voltage (Vgs) | -16 V, 20 V |
| Drain to Source Breakdown Voltage (Vds) | 40 V |
| Schedule B | 8541290080 |
| Gate to Source Threshold Voltage | 1.1 V |
Stock: 83368
Distributors
pcbx
pcbxUnit Price$0.35650
Ext.Price$0.35650
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.35650 | $0.35650 |
| 10 | $0.29837 | $2.98370 |
| 25 | $0.28527 | $7.13175 |
| 50 | $0.27274 | $13.63700 |
| 100 | $0.26076 | $26.07600 |
| 300 | $0.25688 | $77.06400 |
| 500 | $0.25306 | $126.53000 |
| 1000 | $0.24366 | $243.66000 |
| 3000 | $0.22057 | $661.71000 |
| 5000 | $0.21626 | $1081.30000 |
| 10000 | $0.21203 | $2120.30000 |
