SISS27DN-T1-GE3
Manufacturer:
Vishay
Mfr.Part #:
SISS27DN-T1-GE3
Datasheet:
Description:

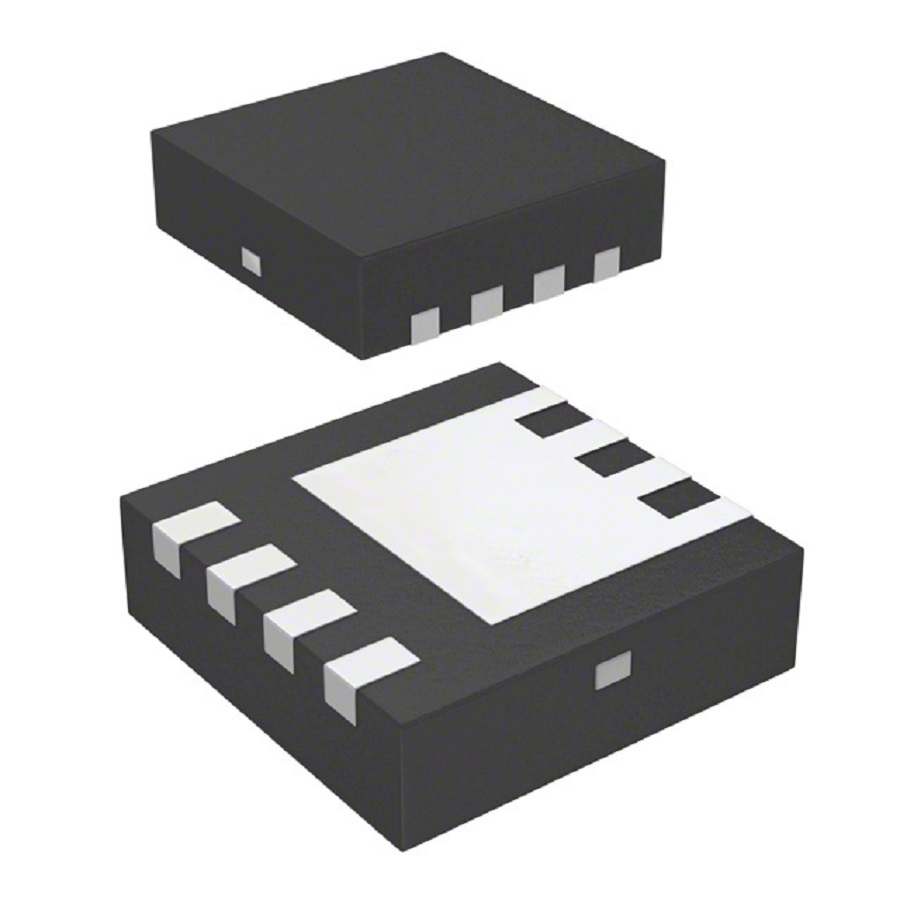

MOSFETs PowerPAK 1212-8S SMD/SMT P-Channel number of channels:1 4.8 W -30 V Continuous Drain Current (ID):-23 A 92 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -50 °C |
| Number of Pins | 8 |
| Height | 830 µm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Max Power Dissipation | 57 W |
| Power Dissipation | 4.8 W |
| Number of Channels | 1 |
| Input capacitance | 5.25 nF |
| Continuous Drain Current (ID) | -23 A |
| Rds On Max | 5.6 mΩ |
| Drain to Source Voltage (Vdss) | -30 V |
| FET Type(Transistor Polarity) | P-Channel |
| Turn-On Delay Time | 16 ns |
| Turn-Off Delay Time | 65 ns |
| Element Configuration | Single |
| Fall Time | 20 ns |
| Rise Time | 45 ns |
| Gate Charge | 92 nC |
| Drain to Source Resistance | 4.6 mΩ |
| Max Junction Temperature (Tj) | 150 °C |
| Gate to Source Voltage (Vgs) | 20 V |
| Drain to Source Breakdown Voltage (Vds) | -30 V |
| Gate to Source Threshold Voltage | 1 V |
Stock: 2091
Distributors
pcbx
pcbxUnit Price$0.56352
Ext.Price$0.56352
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.56352 | $0.56352 |
| 10 | $0.45446 | $4.54460 |
| 25 | $0.41618 | $10.40450 |
| 50 | $0.38112 | $19.05600 |
| 100 | $0.34901 | $34.90100 |
| 300 | $0.32934 | $98.80200 |
| 500 | $0.31079 | $155.39500 |
| 1000 | $0.29391 | $293.91000 |
