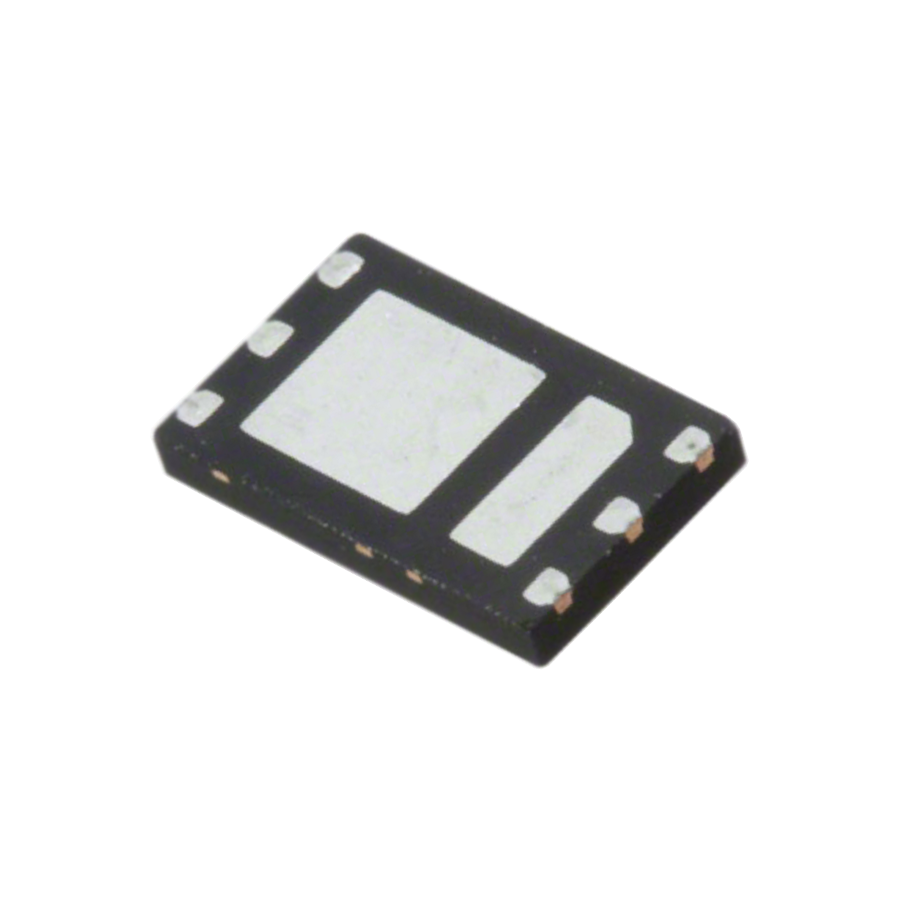

SIZ710DT-T1-GE3
Manufacturer:
Vishay
Mfr.Part #:
SIZ710DT-T1-GE3
Datasheet:
Description:
MOSFETs PowerPair-6 SMD/SMT N-Channel number of channels:2 4.6 W 20 V Continuous Drain Current (ID):16 A 18 nC, 60 nC
| Parameter | Value |
|---|---|
| Length | 6 mm |
| Width | 3.73 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 6 |
| Resistance | 6.8 mΩ |
| Height | 750 µm |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Number of Elements | 2 |
| Max Power Dissipation | 48 W |
| Power Dissipation | 4.6 W |
| Threshold Voltage | 2.2 V |
| Number of Channels | 2 |
| Input capacitance | 820 pF |
| Continuous Drain Current (ID) | 16 A |
| Rds On Max | 6.8 mΩ |
| Drain to Source Voltage (Vdss) | 20 V |
| FET Type(Transistor Polarity) | N-Channel |
| Element Configuration | Dual |
| Fall Time | 12 ns |
| Rise Time | 15 ns |
| Gate Charge | 18 nC, 60 nC |
| Drain to Source Resistance | 2.7 mΩ |
| Nominal Vgs | 2.2 V |
| Gate to Source Voltage (Vgs) | 20 V |
| Drain to Source Breakdown Voltage (Vds) | 20 V |
| Schedule B | 8541290080 |
| Gate to Source Threshold Voltage | 1 V |
Stock: 244
Distributors
pcbx
pcbxUnit Price$1.27043
Ext.Price$1.27043
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.27043 | $1.27043 |
| 10 | $0.81390 | $8.13900 |
| 25 | $0.72118 | $18.02950 |
| 50 | $0.63902 | $31.95100 |
| 100 | $0.56622 | $56.62200 |
| 300 | $0.50171 | $150.51300 |
| 500 | $0.44456 | $222.28000 |
| 1000 | $0.44456 | $444.56000 |
| 3000 | $0.44456 | $1333.68000 |
| 5000 | $0.42490 | $2124.50000 |
