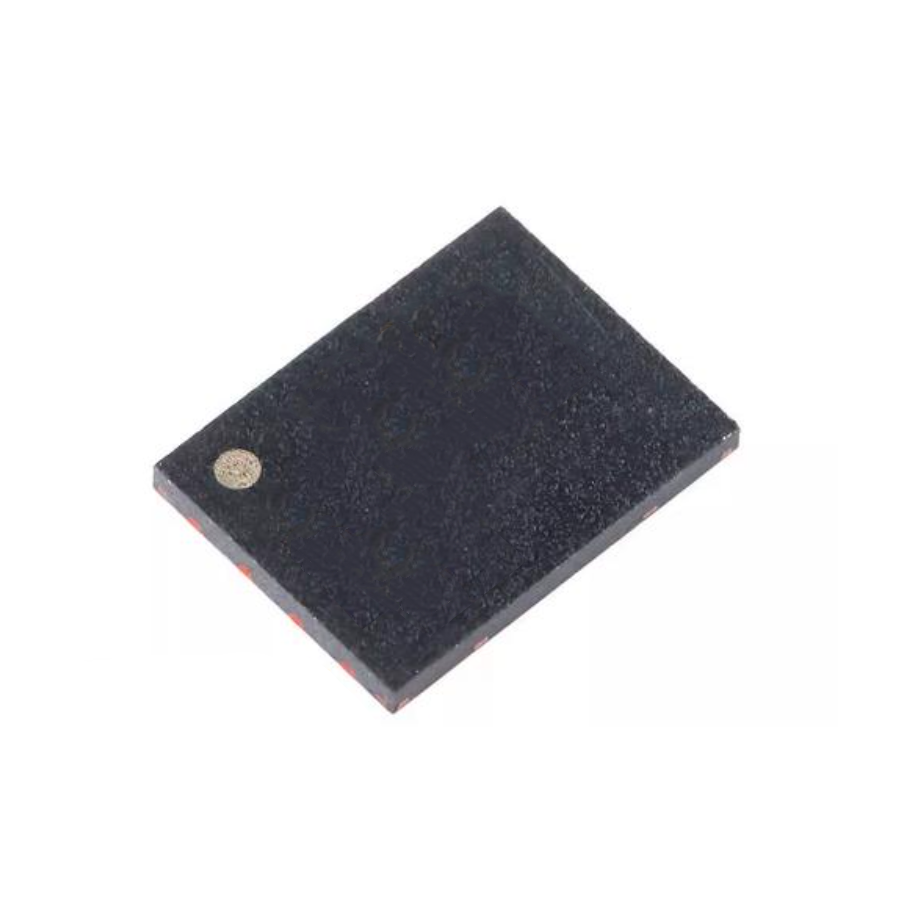

SIZ902DT-T1-GE3
Manufacturer:
Vishay
Mfr.Part #:
SIZ902DT-T1-GE3
Datasheet:
Description:
MOSFETs PowerPair 6X5 SMD/SMT N-Channel number of channels:2 29 W, 66 W 30 V Continuous Drain Current (ID):16 A 21 nC, 65 nC
| Parameter | Value |
|---|---|
| Length | 6 mm |
| Width | 5 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 8 |
| Height | 750 µm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Number of Elements | 2 |
| Max Power Dissipation | 66 W |
| Power Dissipation | 29 W, 66 W |
| Number of Channels | 2 |
| Input capacitance | 790 pF |
| Continuous Drain Current (ID) | 16 A |
| Rds On Max | 12 mΩ |
| Drain to Source Voltage (Vdss) | 30 V |
| FET Type(Transistor Polarity) | N-Channel |
| Turn-Off Delay Time | 35 ns |
| Element Configuration | Dual |
| Rise Time | 10 ns |
| Gate Charge | 21 nC, 65 nC |
| Drain to Source Resistance | 12 mΩ, 6.4 mΩ |
| Gate to Source Voltage (Vgs) | -20 V, 20 V |
| Drain to Source Breakdown Voltage (Vds) | 30 V |
| Gate to Source Threshold Voltage | 1 V |
Stock: 1494
Distributors
pcbx
pcbxUnit Price$1.27043
Ext.Price$1.27043
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.27043 | $1.27043 |
| 10 | $0.81390 | $8.13900 |
| 25 | $0.71410 | $17.85250 |
| 50 | $0.62654 | $31.32700 |
| 100 | $0.54972 | $54.97200 |
| 300 | $0.49006 | $147.01800 |
| 500 | $0.43687 | $218.43500 |
| 1000 | $0.40438 | $404.38000 |
| 3000 | $0.35394 | $1061.82000 |
| 5000 | $0.33599 | $1679.95000 |
