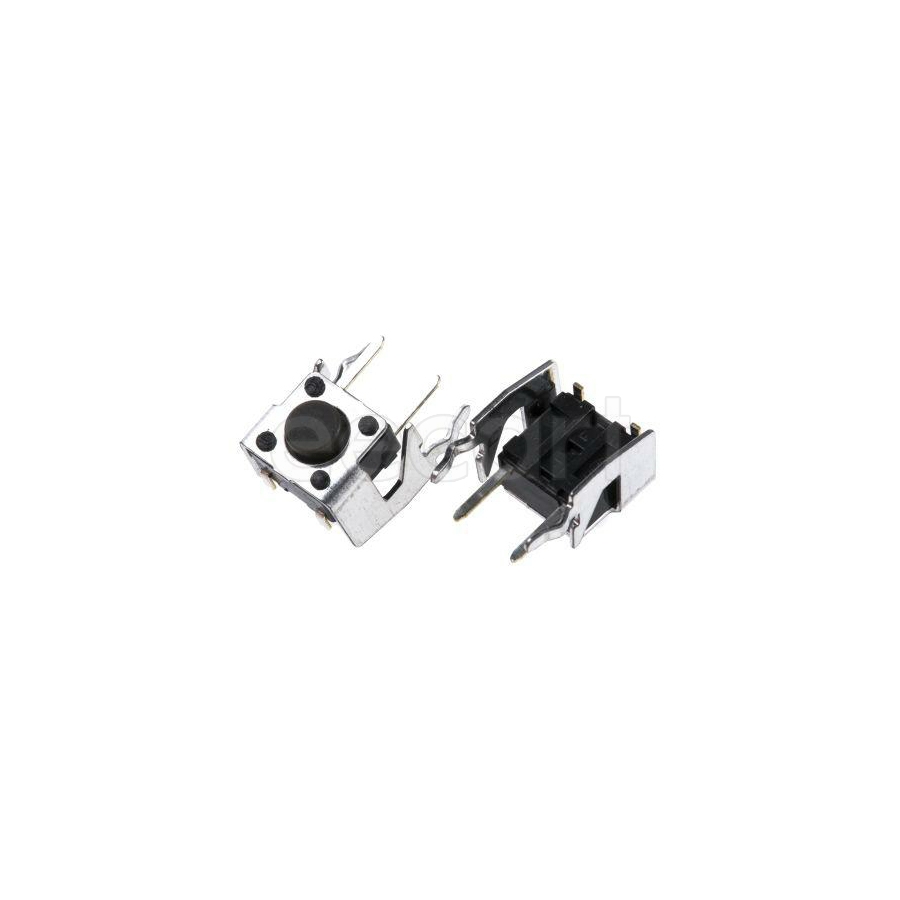

SKHHLNA010
Manufacturer:
ALPS
Mfr.Part #:
SKHHLNA010
Datasheet:
Description:
Tactile Switches Through Hole OFF - (ON) 1.57 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 7.5 mm |
| Width | 6 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -20 °C |
| Packaging | Bulk |
| Depth | 7.85 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Right Angle |
| Color | Grey |
| Actuator Length | 1.3 mm |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Contact Resistance | 100 mΩ |
| Switch Function | OFF - (ON) |
| Illumination Type | Non-Illuminated |
| Electrical Life | 500 kcycles |
| Operating Force | 1.57 N |
| Mechanical Life | 500 kcycles |
| Contact Current Rating | 50 mA |
| Mounting Direction | Straight |
Stock: 2339
Distributors
pcbx
pcbxUnit Price$0.19407
Ext.Price$0.19407
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.19407 | $0.19407 |
| 10 | $0.16757 | $1.67570 |
| 25 | $0.15730 | $3.93250 |
| 50 | $0.15645 | $7.82250 |
| 100 | $0.15560 | $15.56000 |
