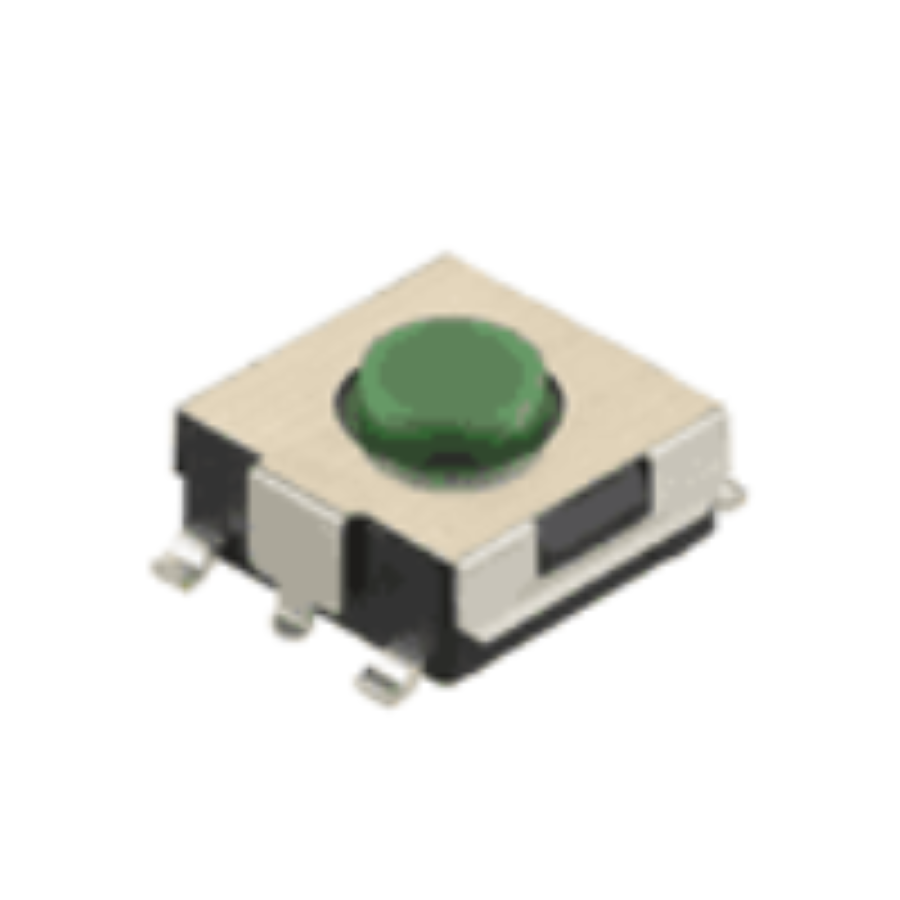

SKHMQKE010
Manufacturer:
ALPS
Mfr.Part #:
SKHMQKE010
Datasheet:
Description:
Tactile Switches SMD/SMT 1 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 6.5 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Packaging | Reel |
| Depth | 8 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Color | Black |
| Actuator Length | 500 µm |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Contact Resistance | 100 mΩ |
| Illumination Type | Non-Illuminated |
| Electrical Life | 500 kcycles |
| Operating Force | 1 N |
| Mechanical Life | 500 kcycles |
| Contact Current Rating | 50 mA |
| Mounting Direction | Straight |
