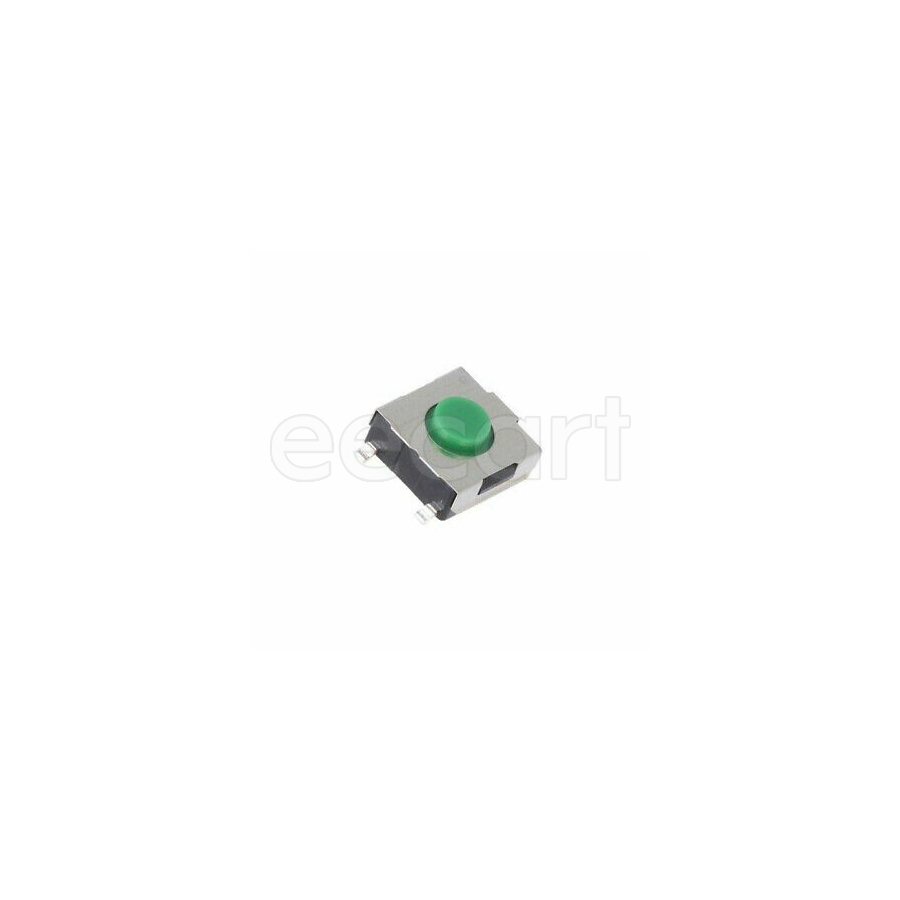

SKHMQLE010
Manufacturer:
ALPS
Mfr.Part #:
SKHMQLE010
Datasheet:
Description:
Tactile Switches SMD/SMT 1.57 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 6.5 mm |
| Width | 6.2 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Height | 3.1 mm |
| Packaging | Reel |
| Voltage Rating | 12 V |
| Depth | 8 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Color | Green |
| Actuator Length | 500 µm |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Contact Resistance | 100 mΩ |
| Illumination Type | Illuminated |
| Electrical Life | 300 kcycles |
| Operating Force | 1.57 N |
| Mechanical Life | 300 kcycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Round |
| Mounting Direction | Straight |
Stock: 1771
Distributors
pcbx
pcbxUnit Price$0.20006
Ext.Price$0.20006
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.20006 | $0.20006 |
| 10 | $0.18637 | $1.86370 |
| 25 | $0.18637 | $4.65925 |
| 50 | $0.18637 | $9.31850 |
| 100 | $0.18637 | $18.63700 |
| 300 | $0.18637 | $55.91100 |
| 500 | $0.18637 | $93.18500 |
| 1000 | $0.18637 | $186.37000 |
| 3000 | $0.18637 | $559.11000 |
