SKPDACD010
Manufacturer:
ALPS
Mfr.Part #:
SKPDACD010
Datasheet:
Description:

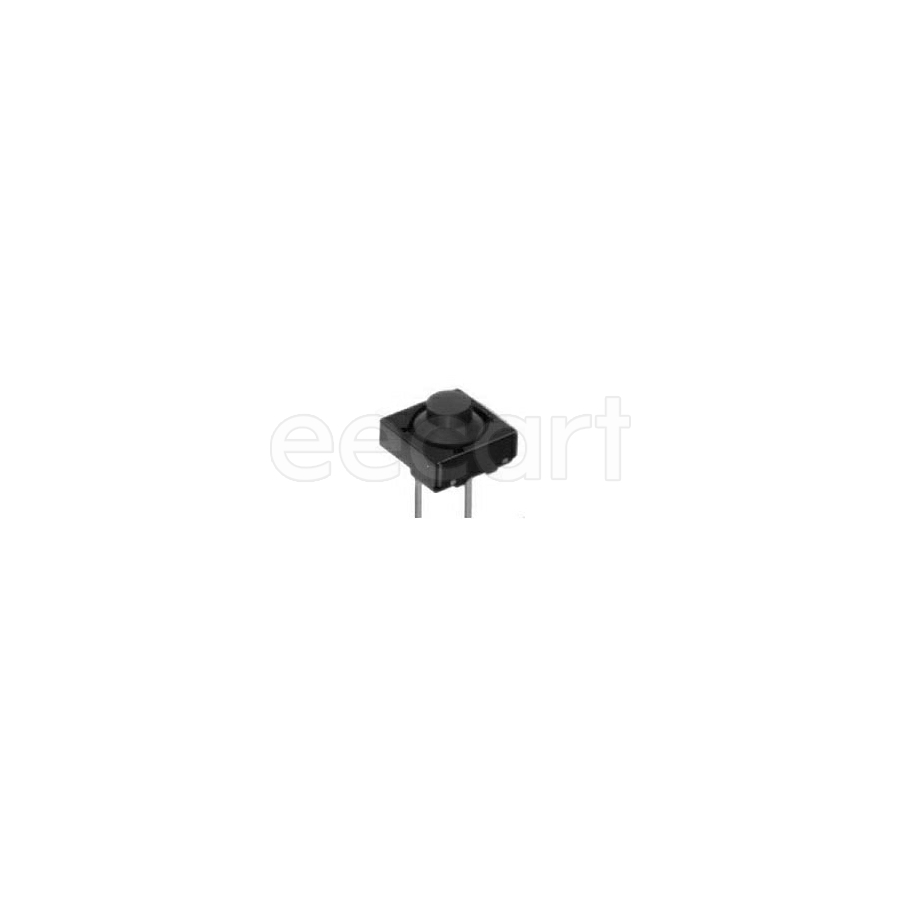

Tactile Switches Through Hole OFF - (ON) 2.45 N
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 7.8 mm |
| Termination | PC Pin |
| Max Operating Temperature | 90 °C |
| Min Operating Temperature | -20 °C |
| Packaging | Reel |
| Depth | 7.8 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Silver |
| Current Rating | 5 mA |
| Max Current Rating | 5 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Color | Blue |
| Actuator Length | 2.5 mm |
| Throw Configuration | SPST |
| Contact Resistance | 1 kΩ |
| Switch Function | OFF - (ON) |
| Illumination Type | Non-Illuminated |
| Electrical Life | 100 kcycles |
| Operating Force | 2.45 N |
| Contact Current Rating | 5 mA |
