SKPFAAA010
Manufacturer:
ALPS
Mfr.Part #:
SKPFAAA010
Datasheet:
Description:

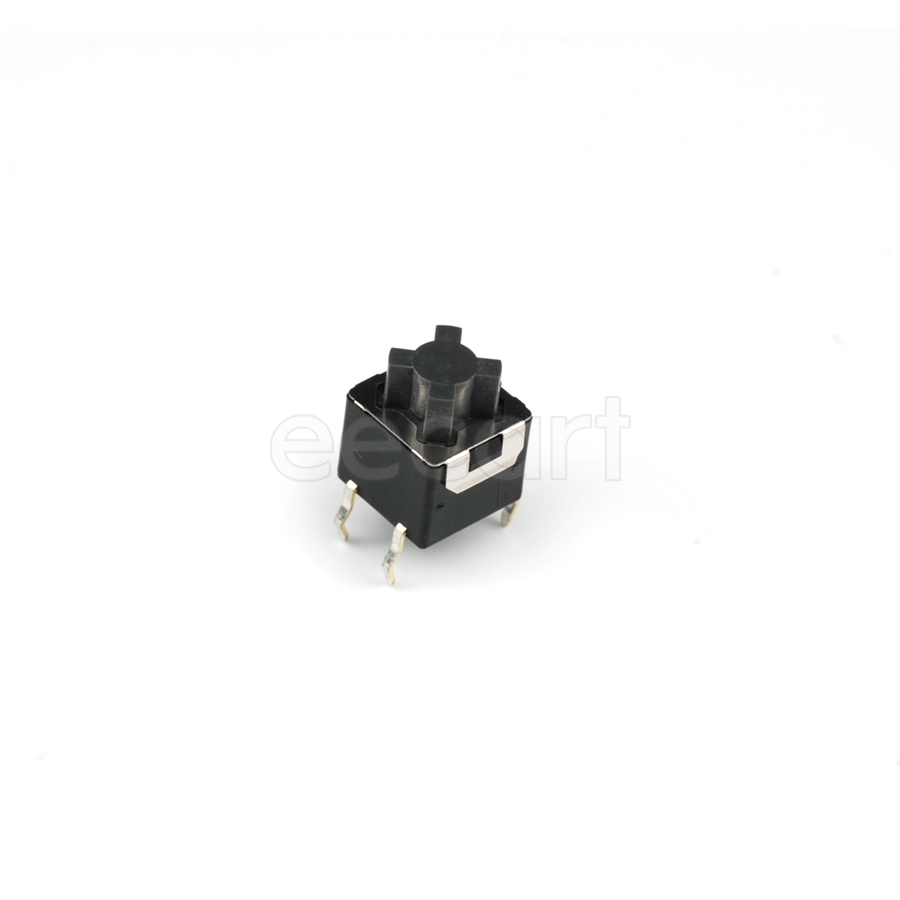

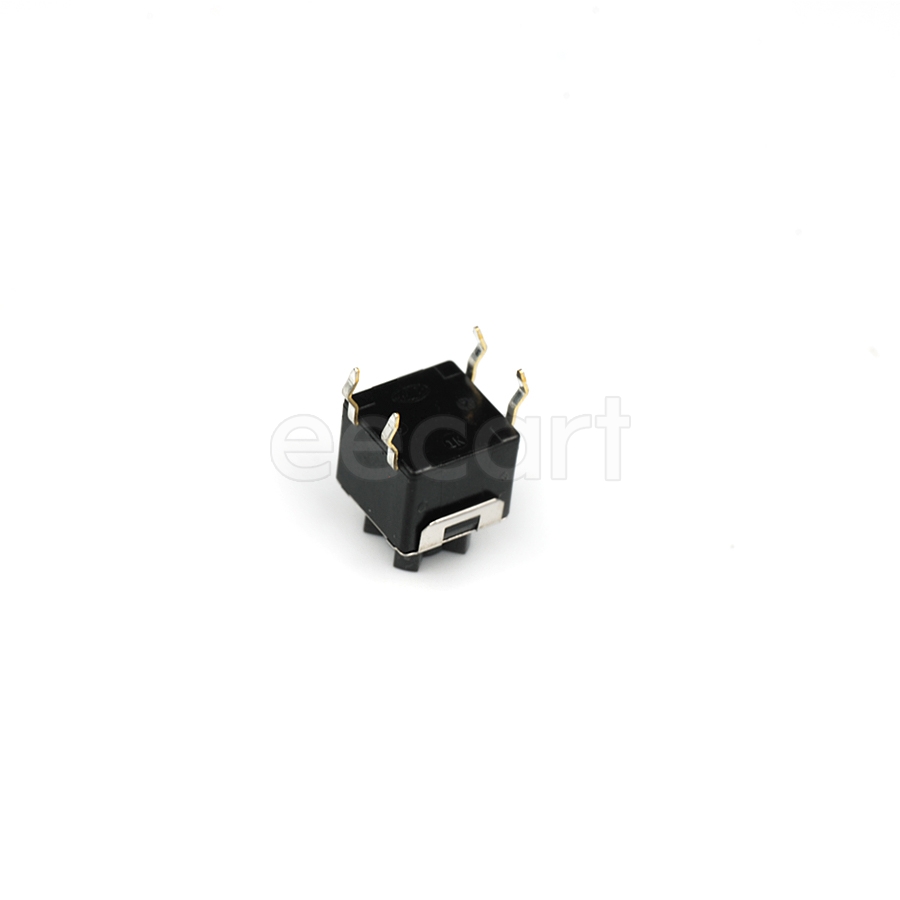

Tactile Switches Through Hole 3.92 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 9 mm |
| Termination | PC Pin |
| Max Operating Temperature | 90 °C |
| Min Operating Temperature | -20 °C |
| Packaging | Bulk |
| Voltage Rating | 12 V |
| Depth | 8.7 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Current Rating | 5 mA |
| Max Current Rating | 5 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Actuator Length | 3.2 mm |
| Throw Configuration | SPST |
| Contact Resistance | 1 Ω |
| Electrical Life | 100 kcycles |
| Operating Force | 3.92 N |
| Schedule B | 8536509065 |
| Mounting Direction | Straight |
Stock: 249
Distributors
pcbx
pcbxUnit Price$0.47491
Ext.Price$0.47491
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.47491 | $0.47491 |
| 10 | $0.38410 | $3.84100 |
| 25 | $0.35282 | $8.82050 |
| 50 | $0.32409 | $16.20450 |
| 100 | $0.29769 | $29.76900 |
| 300 | $0.27699 | $83.09700 |
| 500 | $0.25773 | $128.86500 |
| 1000 | $0.24444 | $244.44000 |
