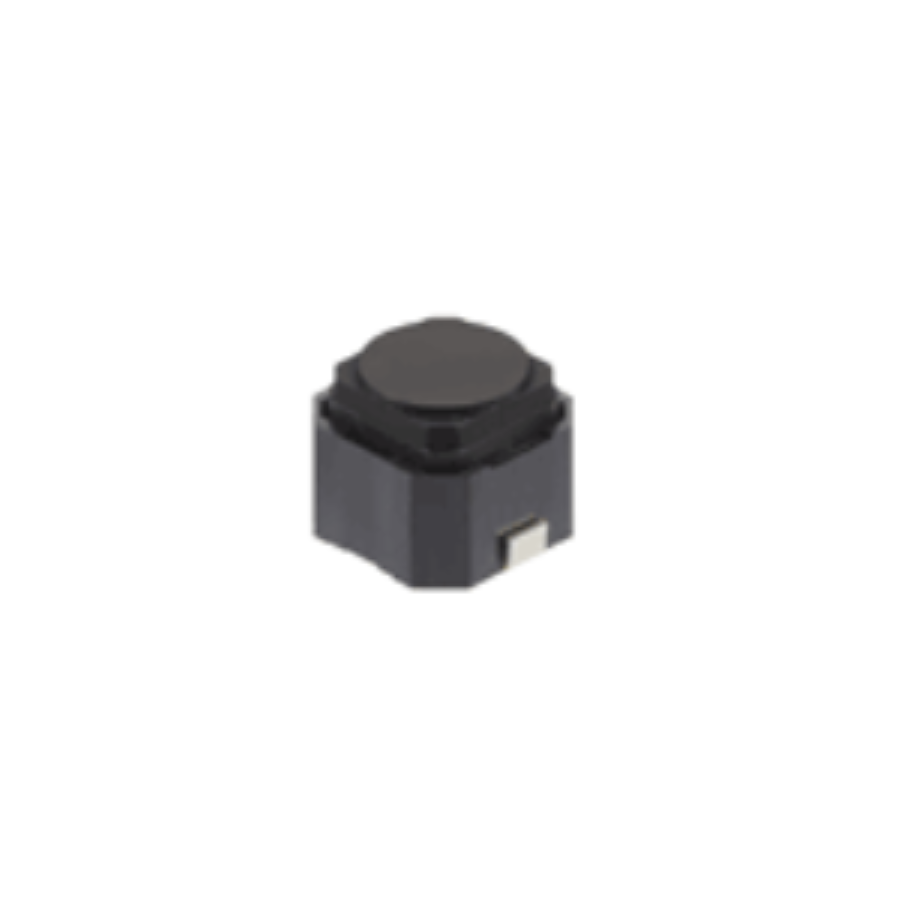

SKPMANE010
Manufacturer:
ALPS
Mfr.Part #:
SKPMANE010
Datasheet:
Description:
Tactile Switches SMD/SMT 2 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 16 V |
| Length | 6.6 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Packaging | Reel |
| Depth | 6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 16 V |
| Orientation | Straight |
| Actuator Length | 5 mm |
| Throw Configuration | SPST |
| Contact Resistance | 100 mΩ |
| Illumination Type | Non-Illuminated |
| Electrical Life | 100 kcycles |
| Operating Force | 2 N |
| Mechanical Life | 100 kcycles |
| Contact Current Rating | 50 mA |
| Mounting Direction | Straight |
Stock: 752
Distributors
pcbx
pcbxUnit Price$0.21287
Ext.Price$0.21287
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21287 | $0.21287 |
| 10 | $0.21117 | $2.11170 |
| 25 | $0.19920 | $4.98000 |
| 50 | $0.19920 | $9.96000 |
| 100 | $0.19920 | $19.92000 |
| 300 | $0.19920 | $59.76000 |
| 500 | $0.19920 | $99.60000 |
| 1000 | $0.19920 | $199.20000 |
