SKQEAAA010
Manufacturer:
ALPS
Mfr.Part #:
SKQEAAA010
Datasheet:
Description:

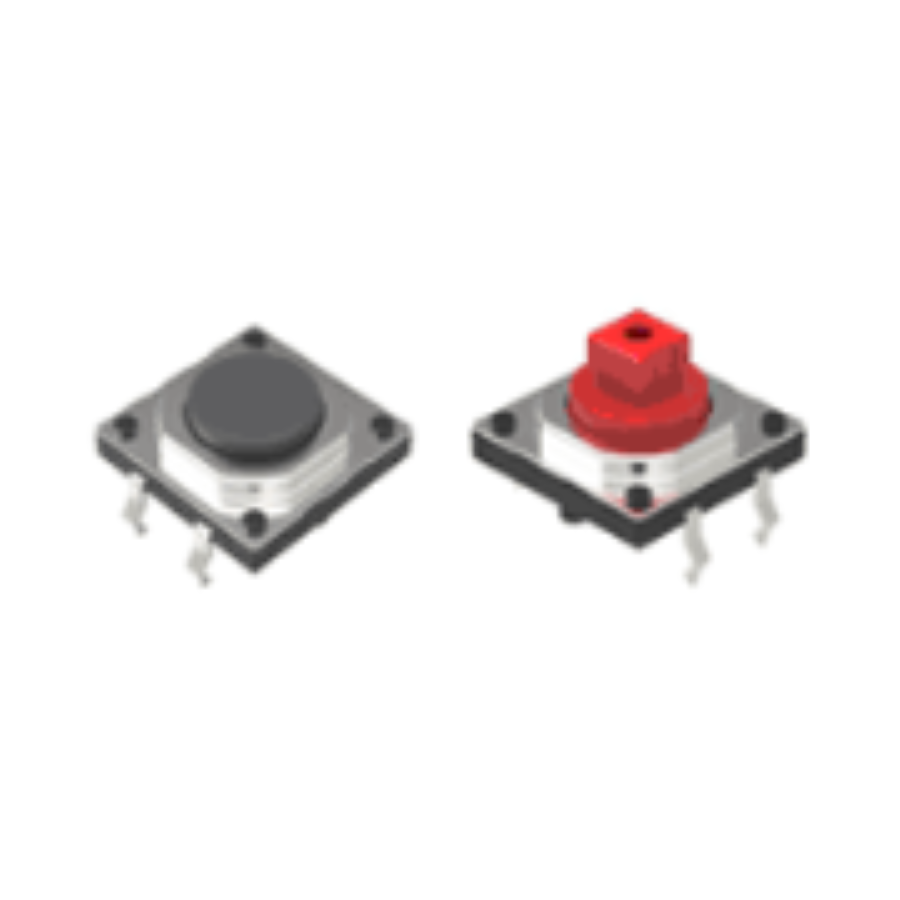

Tactile Switches Through Hole 1.6 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 14 mm |
| Termination | PC Pins |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Packaging | Bulk |
| Depth | 12 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Color | Gray |
| Actuator Length | 3 mm |
| Throw Configuration | SPST |
| Contact Resistance | 100 mΩ |
| Illumination Type | Non-Illuminated |
| Electrical Life | 10 Mcycles |
| Operating Force | 1.6 N |
| Schedule B | 8536509065 |
| Mounting Direction | Straight |
Stock: 793
Distributors
pcbx
pcbxUnit Price$0.73182
Ext.Price$0.73182
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.73182 | $0.73182 |
| 10 | $0.66343 | $6.63430 |
| 25 | $0.60614 | $15.15350 |
| 50 | $0.58082 | $29.04100 |
| 100 | $0.55656 | $55.65600 |
| 300 | $0.48482 | $145.44600 |
| 500 | $0.42233 | $211.16500 |
| 1000 | $0.35821 | $358.21000 |
