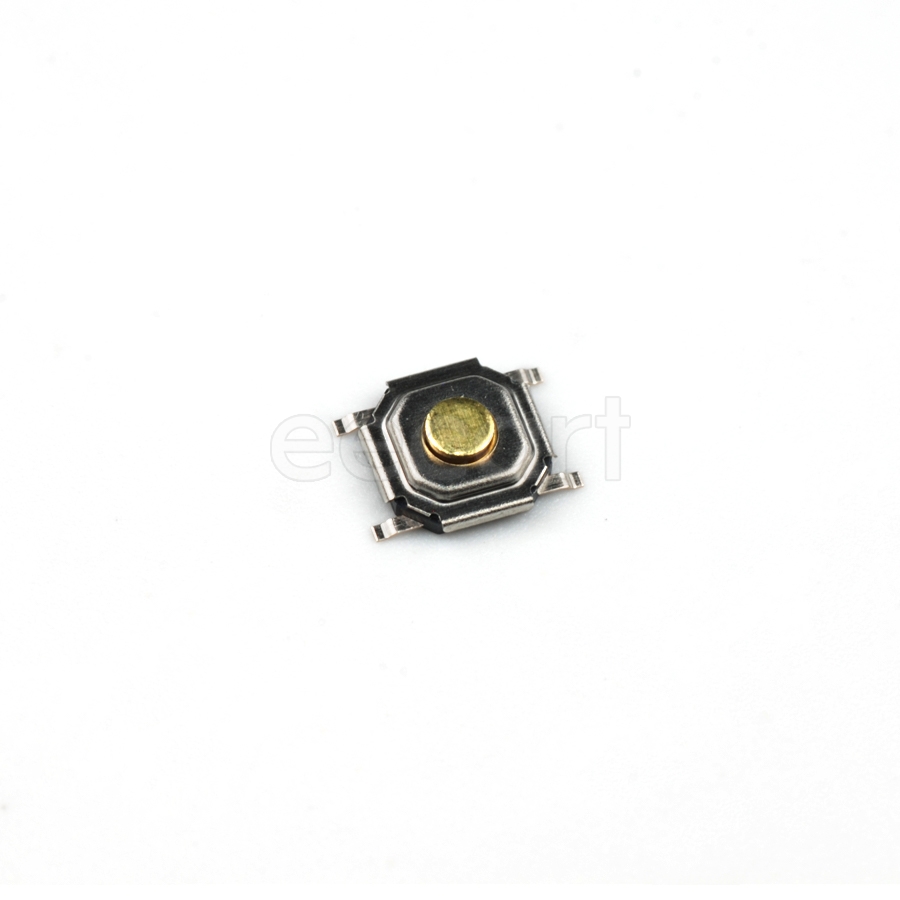

SKQGADE010
Manufacturer:
ALPS
Mfr.Part #:
SKQGADE010
Datasheet:
Description:
Tactile Switches SMD/SMT 2.6 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 6.4 mm |
| Width | 5.2 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -20 °C |
| Packaging | Reel |
| Depth | 5.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Actuator Length | 300 µm |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Contact Resistance | 100 mΩ |
| Illumination Type | Illuminated |
| Electrical Life | 100 kcycles |
| Operating Force | 2.6 N |
| Mechanical Life | 100 kcycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Stem |
| Mounting Direction | Straight |
Stock: 8060
Distributors
pcbx
pcbxUnit Price$0.19407
Ext.Price$0.19407
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.19407 | $0.19407 |
| 10 | $0.16842 | $1.68420 |
| 25 | $0.16842 | $4.21050 |
| 50 | $0.16842 | $8.42100 |
| 100 | $0.16842 | $16.84200 |
| 300 | $0.16842 | $50.52600 |
| 500 | $0.16842 | $84.21000 |
| 1000 | $0.16842 | $168.42000 |
| 3000 | $0.16842 | $505.26000 |
