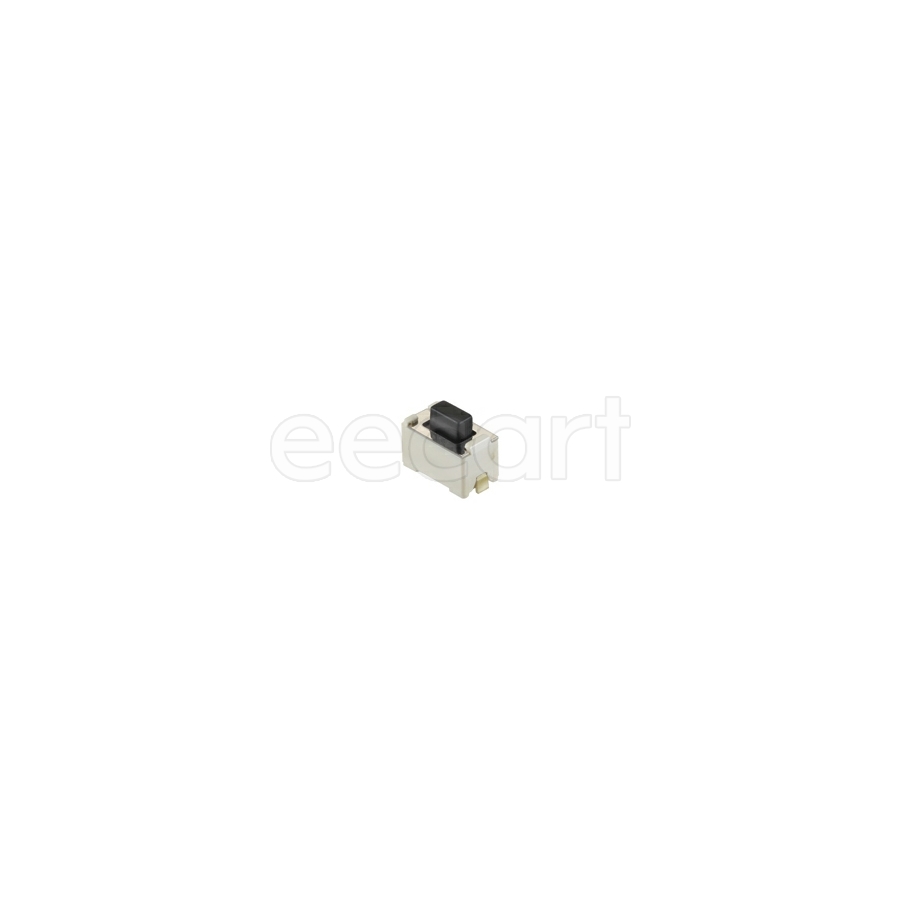

SKQMBBE010
Manufacturer:
ALPS
Mfr.Part #:
SKQMBBE010
Datasheet:
Description:
Tactile Switches SMD/SMT OFF - (ON) 1.57 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 6.3 mm |
| Termination | J-Bend |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Packaging | Reel |
| Depth | 3.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Silver |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Color | Black |
| Actuator Length | 1.5 mm |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Contact Resistance | 500 mΩ |
| Switch Function | OFF - (ON) |
| Illumination Type | Non-Illuminated |
| Electrical Life | 50 kcycles |
| Operating Force | 1.57 N |
| Contact Current Rating | 50 mA |
| Mounting Direction | Straight |
Stock: 588
Distributors
pcbx
pcbxUnit Price$0.28811
Ext.Price$0.28811
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.28811 | $0.28811 |
| 10 | $0.24879 | $2.48790 |
| 25 | $0.23510 | $5.87750 |
| 50 | $0.22506 | $11.25300 |
| 100 | $0.21544 | $21.54400 |
| 300 | $0.21544 | $64.63200 |
| 500 | $0.21544 | $107.72000 |
| 1000 | $0.21544 | $215.44000 |
