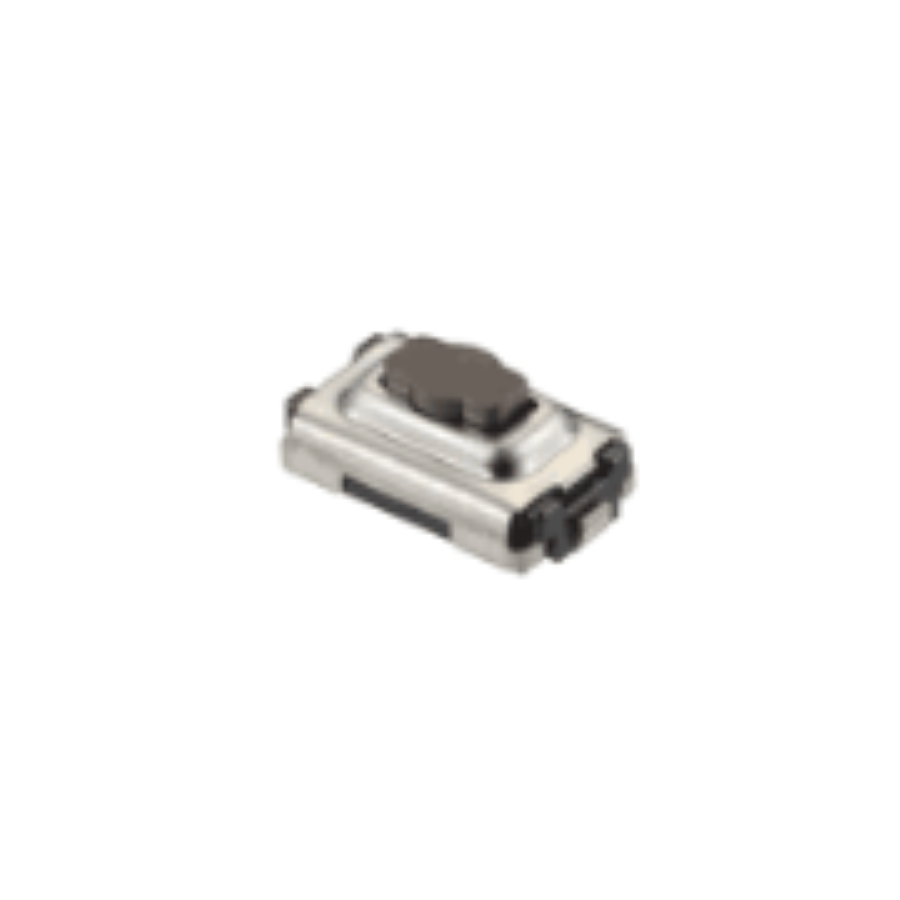

SKQYAAE010
Manufacturer:
ALPS
Mfr.Part #:
SKQYAAE010
Datasheet:
Description:
Tactile Switches SMD/SMT 1.6 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 6.8 mm |
| Width | 6.1 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Packaging | Reel |
| Depth | 3.7 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Contact Resistance | 500 mΩ |
| Illumination Type | Non-Illuminated |
| Electrical Life | 50 kcycles |
| Operating Force | 1.6 N |
| Schedule B | 8536509065 |
| Mounting Direction | Straight |
Stock: 4239
Distributors
pcbx
pcbxUnit Price$0.45055
Ext.Price$0.45055
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.45055 | $0.45055 |
| 10 | $0.39840 | $3.98400 |
| 25 | $0.37959 | $9.48975 |
| 50 | $0.36786 | $18.39300 |
| 100 | $0.35650 | $35.65000 |
| 300 | $0.33942 | $101.82600 |
| 500 | $0.32316 | $161.58000 |
| 1000 | $0.31120 | $311.20000 |
| 3000 | $0.28469 | $854.07000 |
| 5000 | $0.27700 | $1385.00000 |
