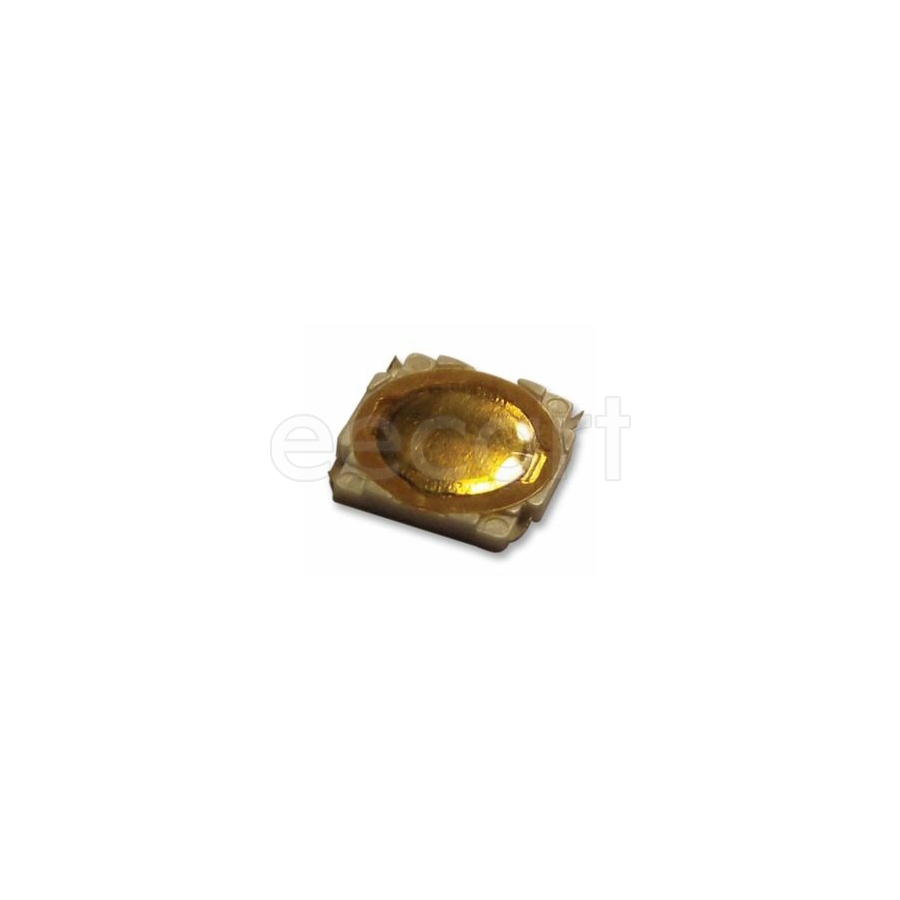

SKRBAKE010
Manufacturer:
ALPS
Mfr.Part #:
SKRBAKE010
Datasheet:
Description:
Tactile Switches SMD/SMT OFF - (ON) 3.5 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Termination | J-Bend |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Actuator Length | 0 m |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Contact Resistance | 100 mΩ |
| Switch Function | OFF - (ON) |
| Illumination Type | Non-Illuminated |
| Electrical Life | 200 kcycles |
| Operating Force | 3.5 N |
| Contact Current Rating | 50 mA |
| Mounting Direction | Straight |
Stock: 5905
Distributors
pcbx
pcbxUnit Price$0.09404
Ext.Price$0.09404
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.09404 | $0.09404 |
| 10 | $0.09063 | $0.90630 |
| 50 | $0.09063 | $4.53150 |
| 100 | $0.09063 | $9.06300 |
| 500 | $0.09063 | $45.31500 |
| 1000 | $0.09063 | $90.63000 |
| 3000 | $0.09063 | $271.89000 |
| 5000 | $0.09063 | $453.15000 |
| 10000 | $0.09063 | $906.30000 |
