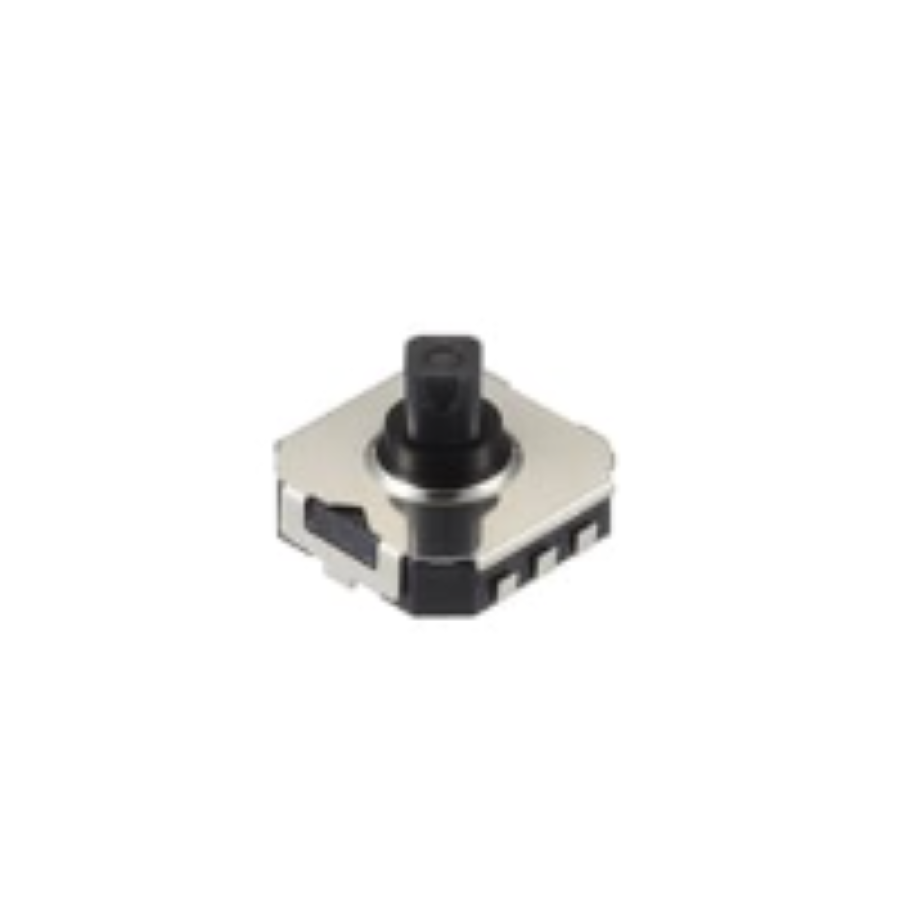

SKRHABE010
Manufacturer:
ALPS
Mfr.Part #:
SKRHABE010
Datasheet:
Description:
Tactile Switches SMD/SMT 1.23 N
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 7.5 mm |
| Width | 7.5 mm |
| Termination | PCB |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Height | 2.14 mm |
| Packaging | Reel |
| Depth | 7.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Actuator Length | 1.8 mm |
| Contact Resistance | 500 mΩ |
| Illumination Type | Non-Illuminated |
| Electrical Life | 200 kcycles |
| Operating Force | 1.23 N |
| Schedule B | 8536509065 |
Stock: 1518
Distributors
pcbx
pcbxUnit Price$1.86420
Ext.Price$1.86420
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.86420 | $1.86420 |
| 10 | $1.53487 | $15.34870 |
| 25 | $1.42009 | $35.50225 |
| 50 | $1.33873 | $66.93650 |
| 100 | $1.26203 | $126.20300 |
| 300 | $1.17304 | $351.91200 |
| 500 | $1.09033 | $545.16500 |
| 1000 | $1.01346 | $1013.46000 |
