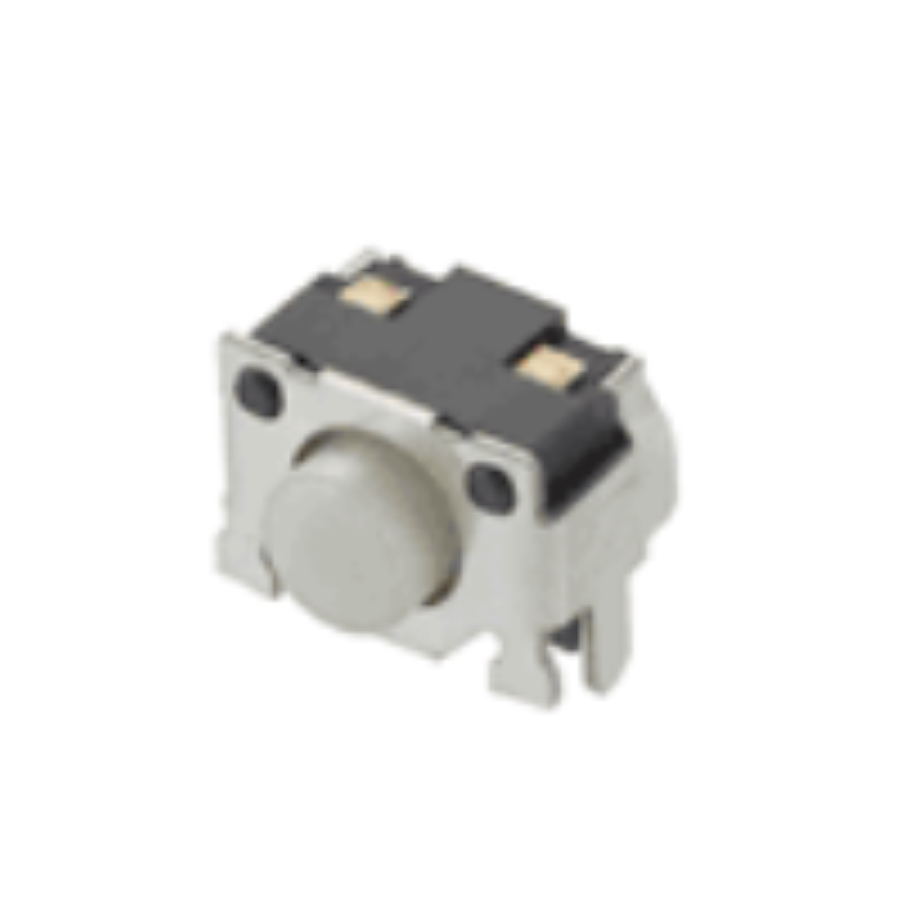

SKRTLBE010
Manufacturer:
ALPS
Mfr.Part #:
SKRTLBE010
Datasheet:
Description:
Tactile Switches SMD/SMT 1.6 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 4.5 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Right Angle |
| Actuator Length | 840 µm |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Contact Resistance | 500 mΩ |
| Illumination Type | Non-Illuminated |
| Electrical Life | 100 kcycles |
| Operating Force | 1.6 N |
| Schedule B | 8536509065 |
| Mounting Direction | Straight |
Stock: 1719
Distributors
pcbx
pcbxUnit Price$0.21287
Ext.Price$0.21287
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21287 | $0.21287 |
| 10 | $0.21117 | $2.11170 |
| 25 | $0.20619 | $5.15475 |
| 50 | $0.20133 | $10.06650 |
| 100 | $0.19658 | $19.65800 |
| 300 | $0.19194 | $57.58200 |
| 500 | $0.18741 | $93.70500 |
| 1000 | $0.18299 | $182.99000 |
| 3000 | $0.17868 | $536.04000 |
