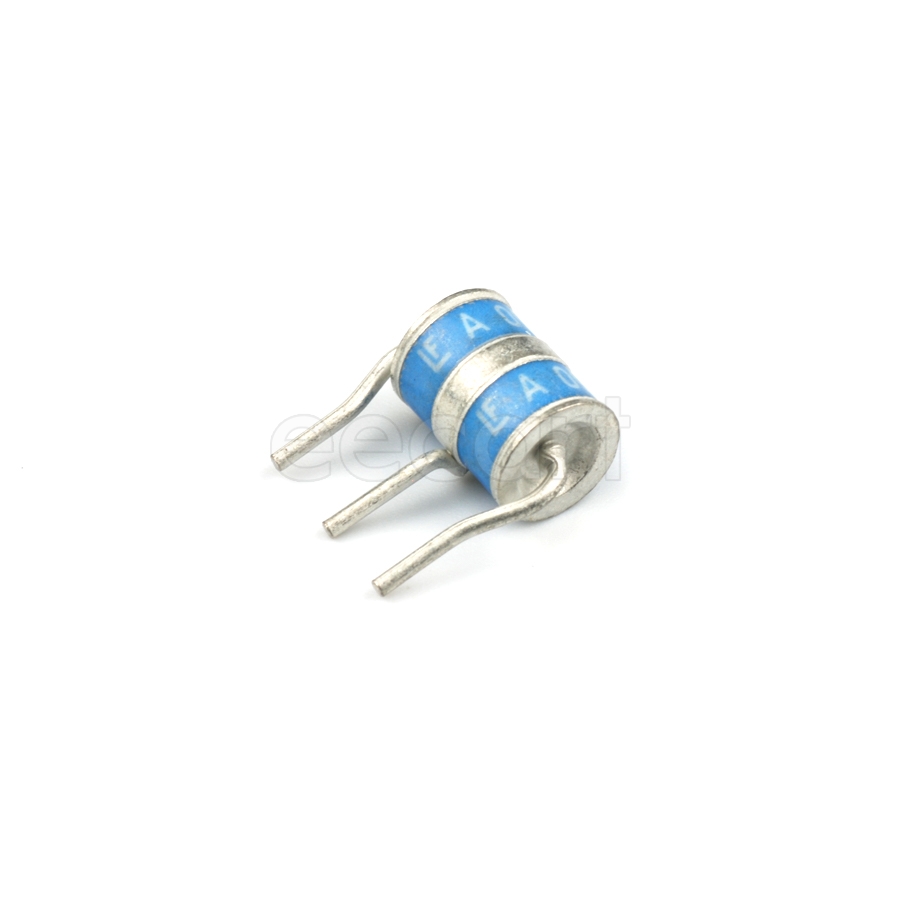

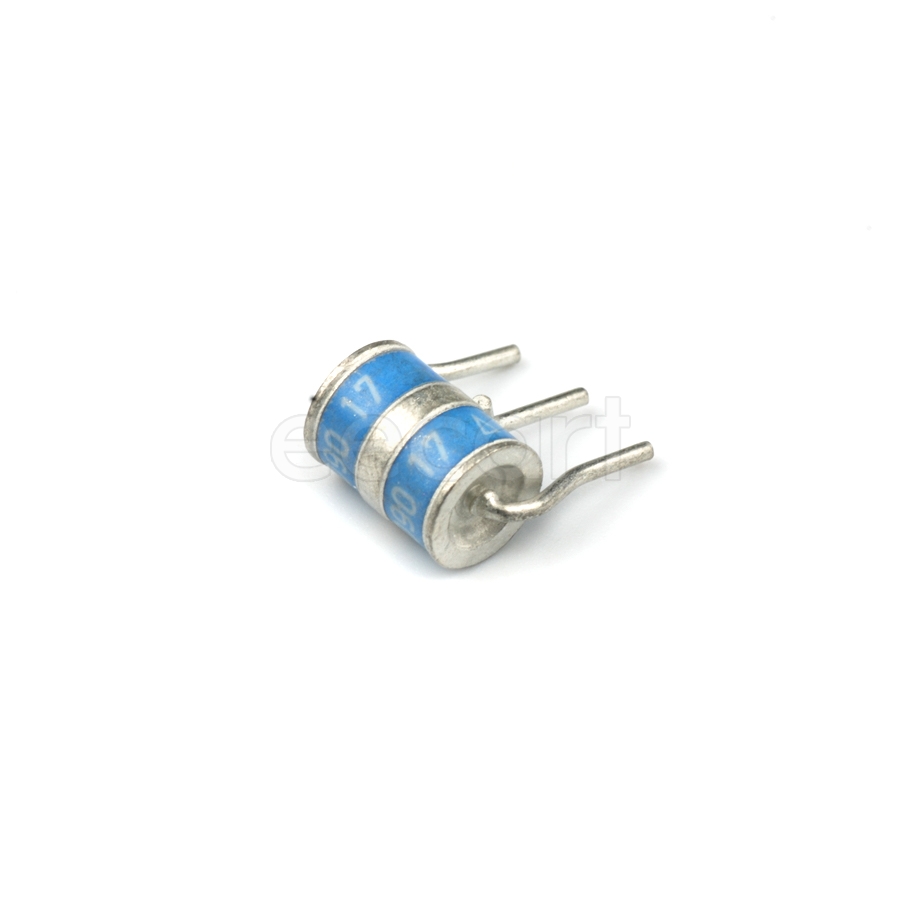

SL1003A090R
Manufacturer:
Littelfuse
Mfr.Part #:
SL1003A090R
Datasheet:
Description:
Gas Discharge Tube Arresters (GDT) Through Hole 2 kA 90 V Number of Poles:3 Diameter:6 mm
| Parameter | Value |
|---|---|
| Capacitance | 1.2 pF |
| Length | 12.2 mm |
| Termination | Radial |
| Diameter | 6 mm |
| Max Operating Temperature | 90 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tray |
| Voltage Rating | 90 V |
| Depth | 6.3 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Number of Terminals | 3 |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Number of Poles | 3 |
| Peak Pulse Current | 2 kA |
| Min Breakdown Voltage | 72 V |
| Max Breakdown Voltage | 108 V |
| DC Sparkover | 90 V |
Stock: 532
Distributors
pcbx
pcbxUnit Price$1.86460
Ext.Price$1.86460
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.86460 | $1.86460 |
| 10 | $1.42687 | $14.26870 |
| 25 | $1.35315 | $33.82875 |
| 50 | $1.28325 | $64.16250 |
| 100 | $1.28097 | $128.09700 |
| 300 | $1.27869 | $383.60700 |
| 500 | $1.27641 | $638.20500 |
| 1000 | $1.02591 | $1025.91000 |
