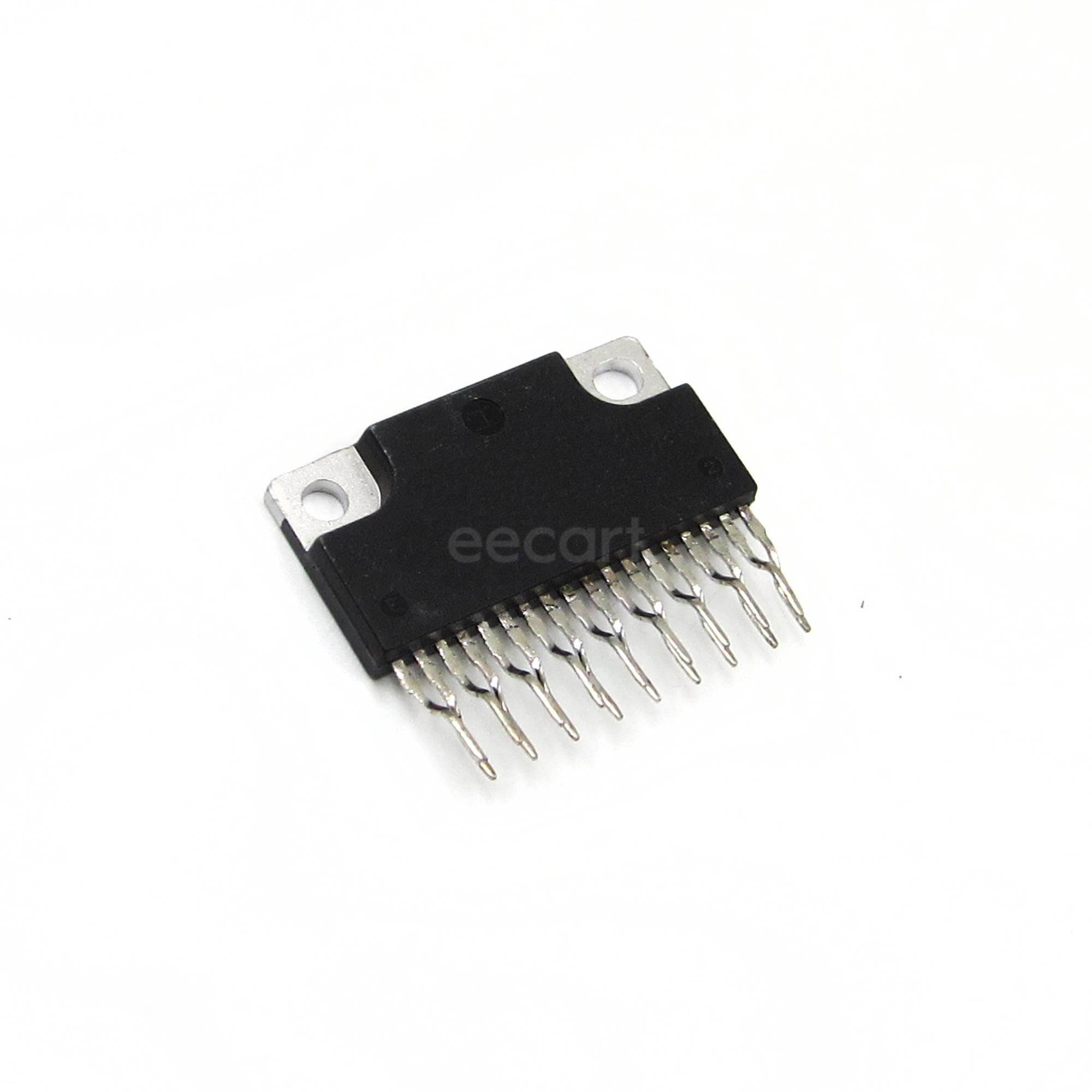

SLA7026M
Manufacturer:
Sanken
Mfr.Part #:
SLA7026M
Datasheet:
Description:
Motor Drivers SIP-18 Through Hole Parallel Load voltage:10 V to 44 V Half Bridge (2)
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -20 °C |
| Number of Pins | 18 |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Interface | Parallel |
| Output Current | 3 A |
| Output Voltage | 100 V |
| Operating Supply Voltage | 24 V |
| Max Supply Voltage | 44 V |
| Min Supply Voltage | 10 V |
| Logic Function | AND |
| Number of Outputs | 4 |
| Motor Type | Stepper |
| Schedule B | 8542390000 |
| Load Voltage | 10 V to 44 V |
| Motor Type - Stepper | Unipolar |
| Applications | General Purpose |
| Chemistry/Technology | Power MOSFET |
| Step Resolution | 1, 1/2 |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Packaging | Tube |
| Output Configuration | Half Bridge (2) |
